74HC9114D,118

Overview

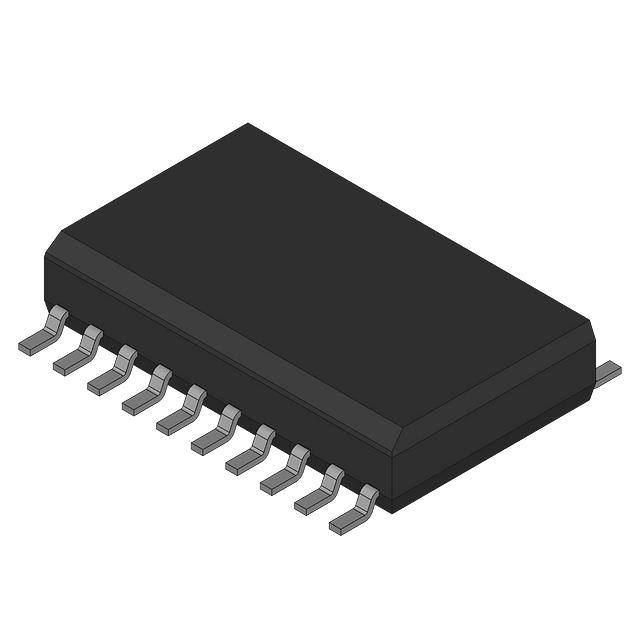

The Nexperia 74HC9114D,118 is a high-speed HC CMOS inverting buffer and line driver housed in a 20-pin SOIC package. It features nine input lines and nine corresponding output lines. The device operates within a supply voltage range of 2 V to 6 V and supports a wide operating temperature range from -40 °C to +125 °C. Key electrical characteristics include a maximum static current of 8 µA, with high-level and low-level output currents specified at 5.2 mA.

Feature Summary

• Provides nine-channel inverting buffering for signal integrity maintenance
• Capable of driving transmission lines with defined output current capabilities
• Operates reliably across extended industrial temperature ranges

Applications

• High-speed data bus buffering
• Signal line termination and driving
• Industrial control system interfaces

Procurement Notes

Verify the specific suffix '118' corresponds to the standard tape-and-reel packaging configuration required for your assembly process. Confirm that the SOIC-20 footprint matches your PCB design guidelines. Ensure the component meets RoHS compliance standards relevant to your target market regulations before finalizing procurement orders.

Selection Notes

Select this component when nine-channel inverting buffering is required within a single package. It is suitable for applications needing operation between 2 V and 6 V. Consider the SOIC-20 package constraints regarding thermal dissipation and board space. Verify compatibility with existing logic families in mixed-voltage environments.

Part Context

This part belongs to the 74HC series of high-speed CMOS logic devices manufactured by Nexperia. It functions as a buffer and line driver, distinct from multiplexers or shift registers found in other product lines. The device is designed for general-purpose digital logic applications requiring reliable signal inversion and drive capability.

Replacement Considerations

Check for direct pin-compatible alternatives within the same 74HC family. Verify if non-Nexperia manufacturers offer equivalent specifications for the 74HC9114 function in an SOIC-20 package.
