Product Detailed Parameters
- Description：IC GATE NAND
- Series：*
- Mfr：Nexperia USA Inc.
- Package：Bulk
- Logic Type：-
- Number of Circuits：-
- Number of Inputs：-
- Features：-
- Voltage - Supply：-
- Current - Quiescent (Max)：-
- Current - Output High, Low：-
- Input Logic Level - Low：-
- Input Logic Level - High：-
- Max Propagation Delay @ V, Max CL：-
- Operating Temperature：-
- Mounting Type：-
- Supplier Device Package：-
- Package / Case：-
- Grade：-
- Qualification：-
Download product information
Overview

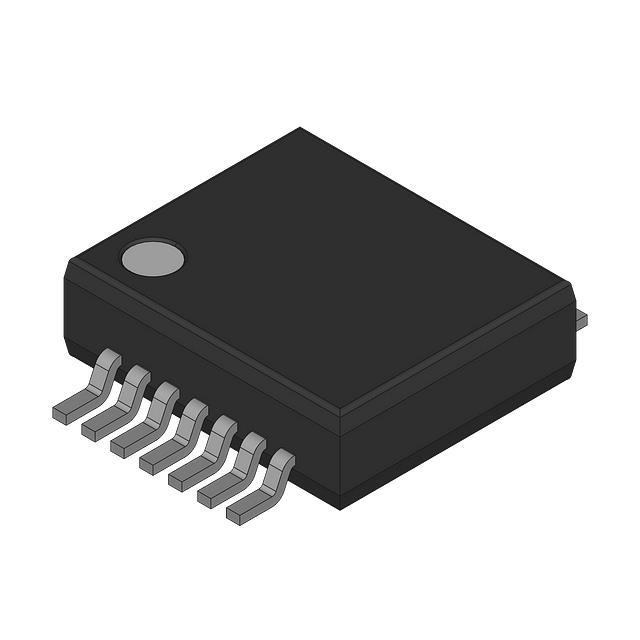

The 74HCT132DB,118 is a quad 2-input NAND gate with Schmitt-trigger inputs manufactured by Nexperia. It operates within a supply voltage range of 2.0 V to 6.0 V and features CMOS low power dissipation with high noise immunity. The device includes input clamp diodes for interfacing with voltages exceeding VCC. It is specified for operating temperatures from -40 °C to +125 °C and complies with JEDEC standards JESD8C and JESD7A. Latch-up performance exceeds 100 mA per JESD 78 Class II Level B.
Feature Summary
- Quad 2-input NAND logic function
- Schmitt-trigger inputs for signal shaping
- Wide supply voltage compatibility
- High noise immunity and ESD protection
Applications
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
Procurement Notes
Verify component authenticity through authorized Nexperia distributors or official channels. Confirm the specific suffix matches the SSOP-14 package variant. Check current lifecycle status as discontinuation notices may apply to older manufacturing runs. Ensure compliance with RoHS directives relevant to your region before integration into final products.
Selection Notes
Select this component when Schmitt-trigger action is required to eliminate jitter on slowly changing input signals. It serves as a direct replacement for standard 74HC132 devices where noise immunity is critical. Verify that the 2V to 6V supply range aligns with system requirements. Consider the SSOP-14 package constraints for PCB layout density.
Part Context
This part belongs to the Nexperia 74HCT series of high-speed CMOS logic devices. It provides TTL-compatible input levels while maintaining CMOS output characteristics. The 74HCT132 variant specifically integrates Schmitt triggers into the standard NAND gate architecture, distinguishing it from non-Schmitt counterparts like the 74HC00.
Replacement Considerations
The 74HC132PW,118 is a documented alternative package option for the same logical function. Other manufacturers' equivalents such as SN74HC132DBR are available but require verification of pinout and electrical parameter alignment.
