Product Detailed Parameters
- Description：IC INVERTER 6CH 6-INP 14TSSOP
- Series：-
- Mfr：Nexperia USA Inc.
- Package：Bulk
- Logic Type：Inverter
- Number of Circuits：6
- Number of Inputs：6
- Features：Schmitt Trigger
- Voltage - Supply：4.5V ~ 5.5V
- Current - Quiescent (Max)：2 µA
- Current - Output High, Low：4mA, 4mA
- Input Logic Level - Low：1.2V ~ 1.4V
- Input Logic Level - High：1.9V ~ 2.1V
- Max Propagation Delay @ V, Max CL：34ns @ 4.5V, 50pF
- Operating Temperature：-40°C ~ 125°C
- Mounting Type：Surface Mount
- Supplier Device Package：14-TSSOP
- Package / Case：14-TSSOP (0.173", 4.40mm Width)
- Grade：-
- Qualification：-
Download product information
Overview

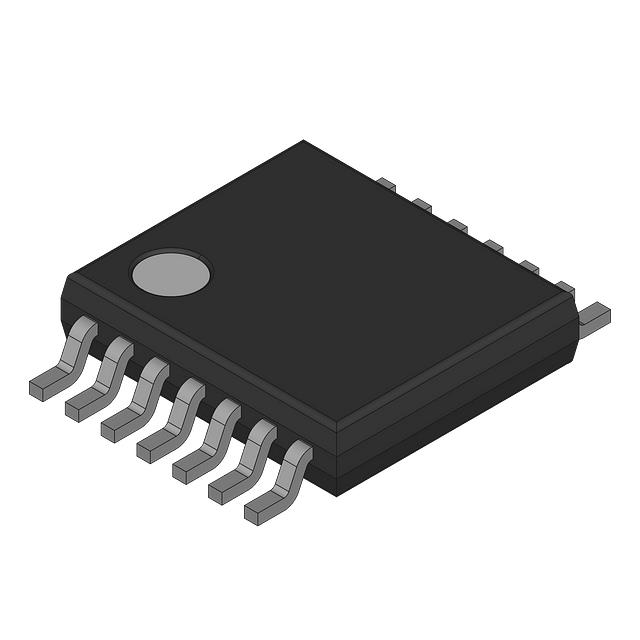

The 74HCT14PW,112 is a hex inverting Schmitt trigger manufactured by Nexperia USA Inc. It operates within a supply voltage range of 2 V to 6 V and features six independent inverters with Schmitt-trigger action on all inputs. The device is housed in a 14-TSSOP surface-mount package. It supports an operating temperature range from -40°C to +125°C and includes ESD protection exceeding 2000 V HBM. The component is RoHS compliant and currently listed as active.
Feature Summary
- Hex inverting buffers with Schmitt-trigger action for noise immunity
- Wide supply voltage operation from 2 V to 6 V
- High ESD protection capability exceeding 2000 V HBM
Applications
- Signal conditioning for noisy environments
- Waveform shaping of slowly changing signals
- Digital logic interface circuits
Procurement Notes
Verify the specific ordering code 74HCT14PW,112 against official Nexperia documentation to confirm current availability status. Ensure the 14-TSSOP package variant matches design requirements. Check for any recent Product Change Notifications regarding labeling or assembly updates before finalizing procurement plans.
Selection Notes
Select this component when hex inversion with hysteresis is required for signal integrity. The wide voltage range accommodates various logic families. Verify that the TSSOP footprint fits the PCB layout constraints. Confirm thermal performance meets system requirements across the specified industrial temperature range.
Part Context
This part belongs to the 74HCT series of high-speed CMOS logic devices. It provides pin-compatible functionality with standard TTL logic levels while offering improved switching characteristics. The series is designed for general-purpose digital applications requiring reliable inversion with noise rejection capabilities.
Replacement Considerations
Check for direct equivalents such as the 74HC14PW variants if TTL input thresholds are not strictly required. Verify pinout compatibility with alternative manufacturers' hex Schmitt triggers before substitution.
