74HCT20DB,118

Overview

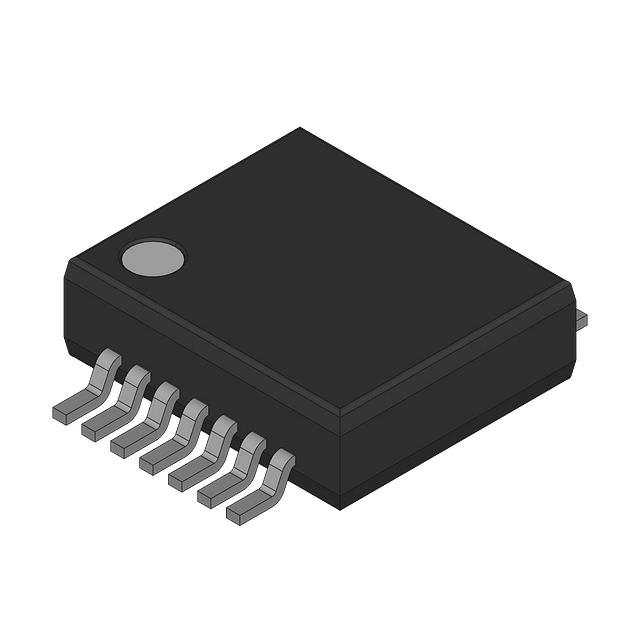

The Nexperia USA Inc. 74HCT20DB,118 is a dual 4-input NAND gate integrated circuit belonging to the 74HCT logic series. It operates within a supply voltage range of 4.5V to 5.5V and features a 14-SSOP surface-mount package with a pin pitch of 1.27mm. The device supports a wide operating temperature range from -40°C to +125°C. It provides two independent logic circuits, each accepting four inputs to produce a single NAND output. The component is currently classified as obsolete by the manufacturer.

Feature Summary

• Dual-channel architecture providing two independent 4-input NAND logic functions within a single package
• High-speed CMOS technology ensuring compatibility with standard TTL logic levels while maintaining low power consumption
• Wide thermal stability allowing reliable operation in extreme industrial environments ranging from sub-zero to high temperatures

Applications

• Digital logic control systems requiring multi-input decision making
• Microprocessor interface circuits for address decoding or command validation
• General-purpose digital signal processing where NAND logic gating is required

Procurement Notes

This specific part number is officially discontinued and no longer manufactured by Nexperia. Procurement must focus on identifying verified replacement components or alternative packages within the same logical family. Verify that any substitute maintains identical pinout configuration and electrical specifications to ensure seamless integration into existing designs without hardware modification.

Selection Notes

Designers should evaluate the 74HCT series characteristics, specifically the 5V operation requirement and propagation delay metrics suitable for the target application speed. Consider the physical constraints of the 14-SSOP footprint during PCB layout. Since the original part is obsolete, select a direct functional equivalent that matches the input count, output drive capability, and package dimensions to maintain design integrity.

Part Context

The 74HCT20DB,118 belongs to the widely adopted 74HCT family of logic ICs, known for bridging the performance gap between older TTL standards and modern CMOS technologies. This specific variant integrates two separate NAND gates, offering a compact solution for complex logic operations. Its obsolescence reflects typical product lifecycle management in semiconductor manufacturing, necessitating migration strategies for long-term production support.

Replacement Considerations

Verify cross-references such as SN74HCT20D or CD74HCT20M from other manufacturers. Ensure the substitute component offers identical 14-pin SSOP packaging and compatible electrical parameters to facilitate drop-in replacement.
