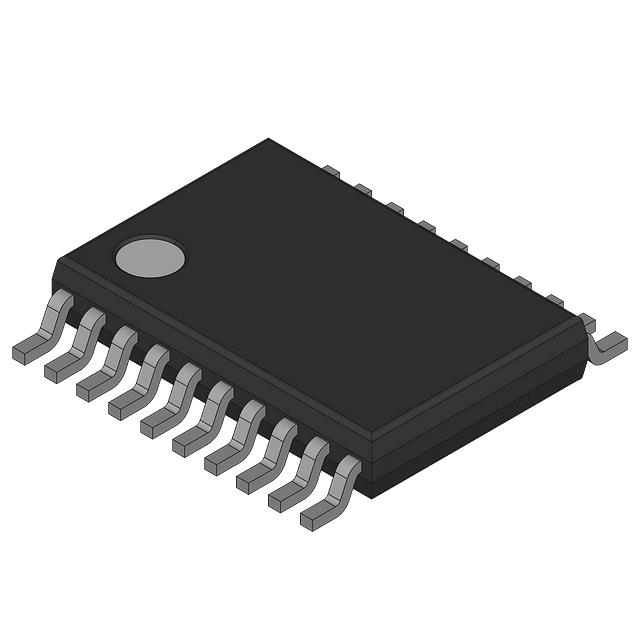

74HCT241PW,112

Overview

The 74HCT241PW,112 is an octal buffer and line driver with three-state outputs manufactured by Nexperia. It operates within a supply voltage range of 2.0 V to 6.0 V and features TTL input levels compatible with the HCT logic family. The device provides non-inverting signal buffering and can function as two independent 4-bit buffers or a single 8-bit buffer. It includes two output enable controls for managing high-impedance states.

Feature Summary

• Octal bus interface with non-inverting three-state outputs
• TTL input levels for compatibility with standard logic families
• Dual output enable controls allowing independent section management

Applications

• Octal bus interface systems
• Line driving applications requiring signal buffering
• General-purpose digital logic buffering

Procurement Notes

Verify the specific suffix '112' against official Nexperia documentation to confirm packaging details and tape-and-reel specifications. Ensure the component meets required environmental standards such as RoHS compliance before integration into final designs.

Selection Notes

Select this component when an octal buffer with three-state capability is required. The HCT variant ensures compatibility with TTL-level inputs while maintaining CMOS performance characteristics. Consider package availability and thermal requirements for the SSOP or TSSOP form factor.

Part Context

This part belongs to the 74HCT series of integrated circuits, which are designed for high-speed CMOS logic operations with TTL-compatible input thresholds. The series offers low power dissipation and high noise immunity, making it suitable for various digital applications in industrial and consumer electronics.

Replacement Considerations

Check for direct pin-to-pin replacements within the same 74HCT family, such as other 74HCT241 variants from Nexperia or equivalent parts from other manufacturers that specify identical electrical characteristics and package dimensions.
