74HCU04DB,118

Inverter Gates Overview

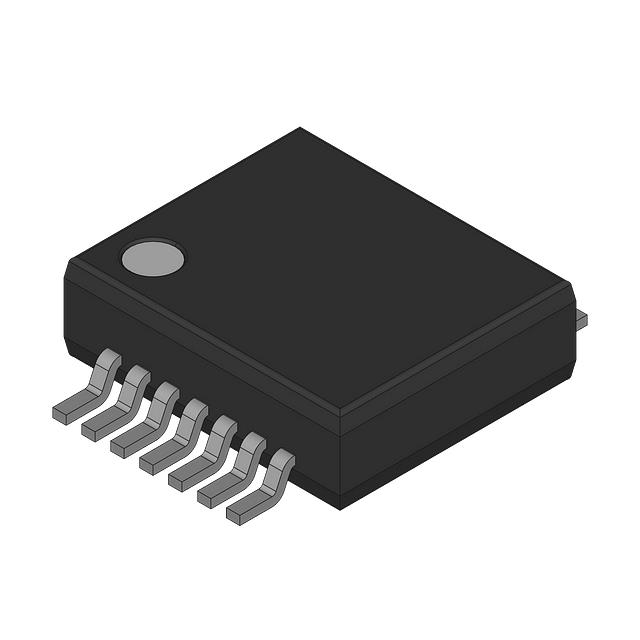

The Nexperia 74HCU04DB,118 is a hex inverter integrated circuit belonging to the standard 74HC logic family. It features six independent inverters housed in a 14-pin SSOP surface-mount package. The device operates within a supply voltage range of 2V to 6V and supports a wide operating temperature range from -40°C to +125°C. Key electrical characteristics include low static power consumption and defined output drive capabilities suitable for general-purpose digital logic applications.

Inverter Gates Feature Summary

• Hex inverter architecture providing six independent signal inversion channels
• Wide supply voltage compatibility supporting 2V to 6V operation
• Extended industrial temperature rating ensuring reliability in harsh environments

Inverter Gates Applications

• General-purpose digital signal inversion
• Clock signal conditioning
• Logic level translation interfaces

Inverter Gates Procurement Notes

Verify component authenticity through official Nexperia channels or authorized distributors. Confirm the specific suffix '118' matches the required SSOP-14 packaging variant. Check current lifecycle status as legacy HC series components may face discontinuation risks. Ensure ESD handling protocols are followed during storage and assembly.

Inverter Gates Selection Notes

Select this component when six independent inverters are required in a compact SSOP footprint. Compare against 74HCT variants if strict 5V CMOS/TTL compatibility is mandatory. Evaluate pinout compatibility with existing PCB layouts before finalizing the design. Consider alternative packages like TSSOP if tighter pitch requirements exist.

Inverter Gates Part Context

This part belongs to the widely adopted 74HC series of high-speed CMOS logic devices. It serves as a fundamental building block for digital circuits requiring signal inversion. The DB suffix indicates the specific SSOP-14 plastic small outline package variant manufactured by Nexperia.
