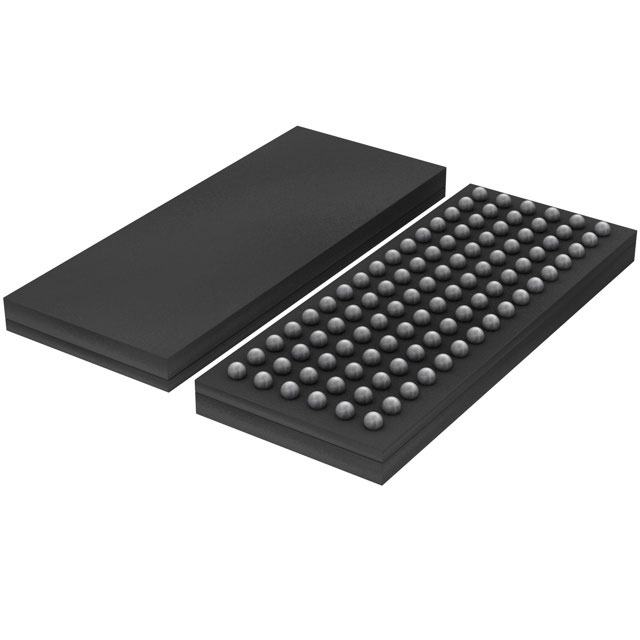

74LCX32244G
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：IC BUF NON-INVERT 3.6V 96FBGA
- Series：74LCX
- Mfr：onsemi
- Package：Tray
- Logic Type：Buffer, Non-Inverting
- Number of Elements：8
- Number of Bits per Element：4
- Input Type：-
- Output Type：3-State
- Current - Output High, Low：24mA, 24mA
- Voltage - Supply：2V ~ 3.6V
- Operating Temperature：-40°C ~ 85°C (TA)
- Mounting Type：Surface Mount
- Package / Case：96-LFBGA
- Supplier Device Package：96-FBGA (13.5x5.5)
Download product information
Overview
The onsemi 74LCX32244G is a low-voltage 32-bit buffer and line driver featuring non-inverting outputs with 3-STATE control. Designed for 2.5V or 3.3V VCC applications, it provides 5V tolerant inputs and outputs to interface with 5V signal environments. The device utilizes advanced CMOS technology for high-speed operation while maintaining low power dissipation. It includes nibble-controlled 3-STATE outputs and supports live insertion/withdrawal capabilities.
Feature Summary
- Features 5V tolerant inputs and outputs for interfacing with 5V signal environments
- Supports live insertion and withdrawal operations
- Utilizes patented noise and EMI reduction circuitry
- Provides nibble-controlled 3-STATE outputs
Applications
- Memory address drivers
- Clock drivers
- Bus oriented transmitter/receiver applications
Procurement Notes
Verify the specific ordering code suffix to confirm packaging type. The 'G' suffix indicates tray packaging, while the 'X' suffix denotes tape and reel options. Ensure compatibility with the required voltage specifications and package dimensions before procurement.
Selection Notes
Select this component for designs requiring 32-bit buffering with 5V tolerance in low-voltage systems. Verify that the operating voltage falls within the 2.3V to 3.6V range. Consider the FBGA96A package constraints and ensure proper handling for fine-pitch ball grid array assembly.
Part Context
This part belongs to the LCX series of low-voltage logic devices. It is manufactured by onsemi, formerly Fairchild Semiconductor. The device is designed to provide high-speed performance with low power consumption, suitable for modern digital systems requiring voltage translation and bus driving capabilities.
Replacement Considerations
Check for direct pin-compatible alternatives within the LCX family. Verify electrical characteristics such as propagation delay and output drive current when substituting. Ensure the replacement device supports the same 5V tolerant input/output requirements and package style.
