74LV02BQ,115

Inverter Gates Overview

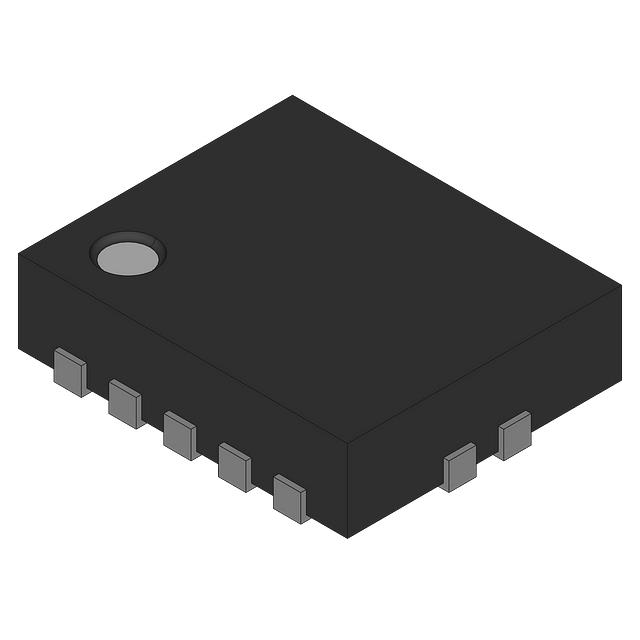

The 74LV02BQ,115 is a Nexperia CMOS logic gate featuring four independent 2-input NOR circuits. It operates within a supply voltage range of 1 V to 5.5 V and supports low-level output currents of 12 mA and high-level output currents of -12 mA. The component utilizes a DHVQFN-14 package (SOT762) for surface-mount installation. It exhibits a propagation delay of 45 ns and functions reliably across an extended temperature range from -40 °C to +125 °C.

Inverter Gates Feature Summary

• Provides four independent 2-input NOR logic functions in a single integrated circuit
• Features wide supply voltage compatibility ranging from 1 V to 5.5 V
• Includes overvoltage tolerant inputs capable of withstanding up to 5.5 V
• Offers robust ESD protection exceeding 2000 V according to HBM standards

Inverter Gates Applications

• General-purpose digital logic processing
• Mixed-voltage system interfacing
• Portable electronic device control circuits

Inverter Gates Procurement Notes

Verify the specific ordering code 74LV02BQ,115 against the manufacturer's current datasheet to confirm package type and electrical specifications. Ensure that the DHVQFN-14 footprint matches the design layout. Confirm compliance with relevant environmental directives such as RoHS before finalizing procurement orders.

Inverter Gates Selection Notes

Select this component when a quad NOR gate configuration is required within a compact surface-mount form factor. The wide operating voltage range allows flexibility in power supply design. Consider the 45 ns propagation delay for timing constraints and verify thermal performance requirements given the extended temperature rating.

Inverter Gates Part Context

This part belongs to the Nexperia 74LV series of low-voltage CMOS logic devices. The 'BQ' suffix indicates the DHVQFN-14 leadless package variant, while ',115' denotes the standard reel packaging format. It is designed for applications requiring small footprints and efficient power consumption.

Inverter Gates Replacement Considerations

Check for direct equivalents within the same 74LV family or other manufacturers offering identical pinouts and logical functions. Verify that any substitute maintains the same DHVQFN-14 package dimensions and electrical characteristics.
