74LVC06APW,112

Inverter Gates Overview

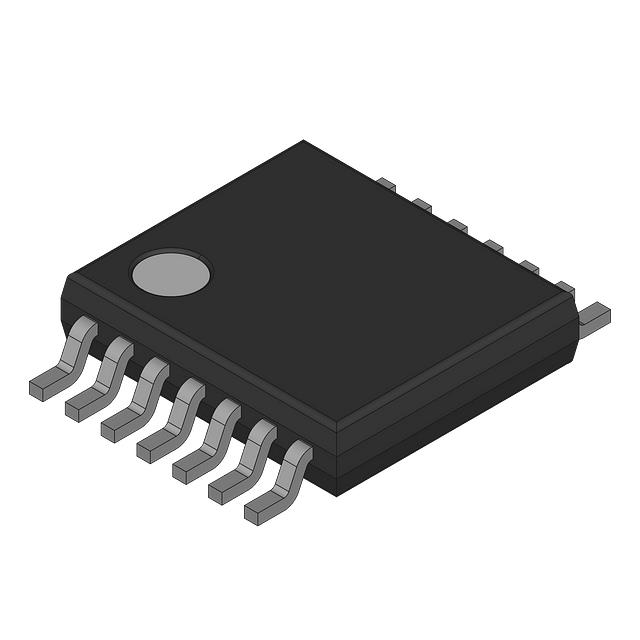

The Nexperia 74LVC06APW,112 is a hex inverter with open-drain outputs housed in a TSSOP14 package (SOT402-1). It operates within a supply voltage range of 1.2 V to 5.5 V and features 5 V tolerant inputs and outputs for interfacing with 5 V logic. The device complies with JEDEC standards JESD8-7A, JESD8-5A, and JESD8-C/JESD36. It supports temperatures from -40 °C to +125 °C and includes ESD protection exceeding 2000 V (HBM) and 1000 V (CDM).

Inverter Gates Feature Summary

• Provides six inverting buffers with open-drain outputs capable of wired-OR or wired-AND functions.
• Features 5 V tolerant inputs and outputs for direct interfacing with 5 V logic systems.
• Supports wide supply voltage operation from 1.2 V to 5.5 V across multiple JEDEC standards.

Inverter Gates Applications

• Mixed 3.3 V and 5 V application translators
• Active-LOW wired-OR logic implementation
• Active-HIGH wired-AND logic implementation

Inverter Gates Procurement Notes

Verify the specific ordering suffix '112' corresponds to the TSSOP14 package variant SOT402-1 as defined in the official datasheet. Confirm that the required operating temperature range aligns with the specified -40 °C to +125 °C limits. Ensure input drive voltages remain within the 5 V tolerance specifications to prevent damage. Check for any recent revision updates to the product data sheet before finalizing design integration.

Inverter Gates Selection Notes

Select this component when designing circuits requiring hex inversion with open-drain output capabilities. It is suitable for applications needing direct interface between 3.3 V and 5 V logic domains without additional level shifting components. Consider the TSSOP14 package constraints for PCB layout and thermal management. Verify that the open-drain nature meets the pull-up requirements of the target circuit topology.

Inverter Gates Part Context

This part belongs to the 74LVC06A family of hex inverters with open-drain outputs manufactured by Nexperia. The APW suffix specifically denotes the TSSOP14 plastic thin shrink small outline package. It is part of the broader LVC (Low-Voltage CMOS) logic portfolio designed for low power consumption and high noise immunity in digital switching applications.

Inverter Gates Replacement Considerations

The 74LVC06AD serves as an alternative package option within the same functional family, utilizing the SO14 package instead of TSSOP14. Both variants share identical electrical characteristics and pin configurations, allowing for potential substitution if package footprint differences are accommodated in the design.

Inverter Gates FAQ

Can the outputs be connected together?

Yes, the open-drain outputs can be connected to other open-drain outputs to implement active-LOW wired-OR or active-HIGH wired-AND functions.

Is the device compatible with TTL levels?

Yes, the 74LVC06A provides a direct interface with TTL levels while maintaining CMOS low power consumption.
