74LVC126APW,112

Overview

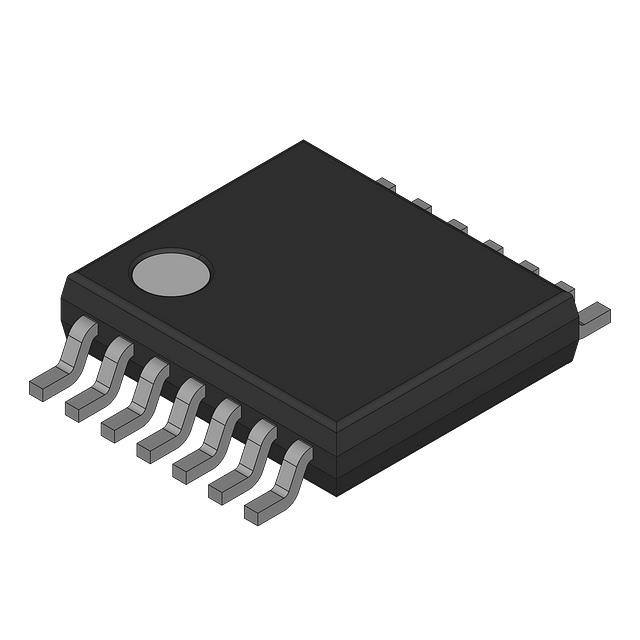

The Nexperia 74LVC126APW,112 is a quad buffer and line driver belonging to the LVC logic family. It features four non-inverting channels with three-state outputs housed in a TSSOP-14 surface-mount package. The device operates within a supply voltage range of 1.2 V to 3.6 V. Key electrical parameters include a high-level output current of -24 mA and a low-level output current of 24 mA. Propagation delay is specified at 2.4 ns, with a maximum static current of 100 nA. The component supports an operating temperature range from -40 °C to +125 °C.

Feature Summary

• Provides four independent non-inverting signal paths for data buffering
• Features three-state outputs to facilitate bus-oriented architectures
• Operates across a wide 1.2 V to 3.6 V power supply range
• Ensures low power consumption with minimal static current draw

Applications

• Bus-oriented systems requiring signal isolation
• Clock distribution networks
• Memory data buffering applications

Procurement Notes

Verify the specific suffix '112' against official Nexperia documentation to confirm tape-and-reel packaging specifications. Ensure the requested quantity aligns with standard factory reel sizes. Confirm RoHS compliance status directly with the manufacturer prior to final procurement decisions.

Selection Notes

Select this component when designing circuits requiring four buffered channels with controlled drive strength. The TSSOP-14 package is suitable for space-constrained PCB layouts. Verify that the system voltage requirements fall strictly within the 1.2 V to 3.6 V operational limits to ensure reliable performance.

Part Context

This part belongs to the 74LVC126A series of quad buffers. It shares functional similarities with other LVC family members but is distinguished by its specific pinout and package configuration. The device is designed for low-voltage digital applications where signal integrity and low power are critical design constraints.

Replacement Considerations

Cross-reference with 74LVC126AD,118 for alternative SOIC packaging options. Verify pin compatibility before substituting with other quad buffer variants from different manufacturers.
