74LVC162244ADL,118

Overview

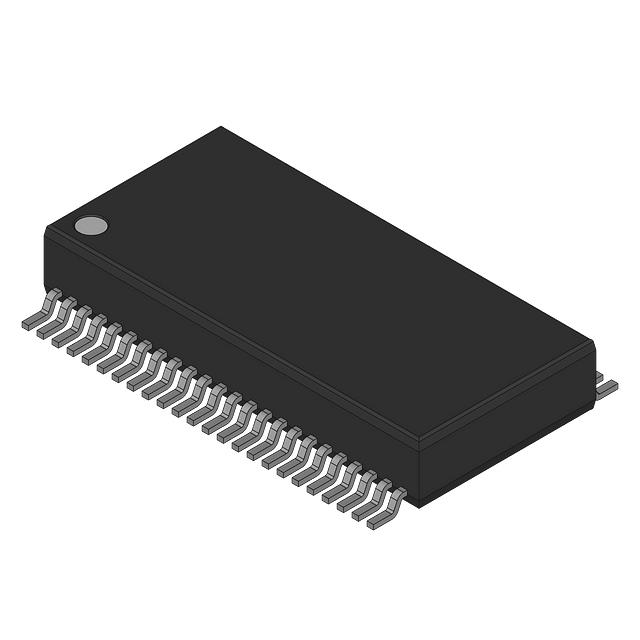

The Nexperia 74LVC162244ADL,118 is a 16-bit buffer and line driver within the 74LVC logic family. It features non-inverting logic with three-state outputs and operates on a supply voltage range of 1.2 V to 3.6 V. The device utilizes an SSOP-48 surface-mount package and supports an operating temperature range from -40 °C to +125 °C. Electrical characteristics include maximum high-level output current of -24 mA and low-level output current of 24 mA. Propagation delay is specified at 11 ns when tested with a 50 pF load at 1.2 V.

Feature Summary

• Provides 16-bit buffering and line driving capabilities with non-inverting functionality
• Features three-state outputs for effective bus management in digital systems
• Incorporates Schmitt-trigger inputs to ensure tolerance against slow input rise and fall times

Applications

• Memory mapping applications requiring wide data bus interfacing
• Clock drivers for distributing timing signals across multiple loads
• Bus-oriented transmissions in mixed-voltage environments

Procurement Notes

Verify the specific ordering code suffix to confirm the SSOP-48 package configuration. Ensure that the selected variant matches the required thermal and electrical specifications for the target application environment. Cross-reference official Nexperia documentation to validate compliance with relevant JEDEC standards before finalizing procurement decisions.

Selection Notes

Select this component for designs requiring 16-bit data path buffering with low power consumption. The wide supply voltage range allows compatibility with various logic families. Consider the SSOP-48 package dimensions for PCB layout constraints and verify that the propagation delay meets the system timing requirements under expected load conditions.

Part Context

This part belongs to the 74LVC series of high-speed CMOS logic devices manufactured by Nexperia. The series is designed for low power consumption and wide operating voltage ranges. The 74LVC162244 specifically addresses the need for 16-bit data handling in compact surface-mount packages, serving as a bridge between different logic domains or memory subsystems.

Replacement Considerations

The 74LVCH162244ADL is a compatible alternative offering similar 16-bit buffering functions with enhanced 5 V tolerance capabilities.
