74LVC16240ADL,112

Overview

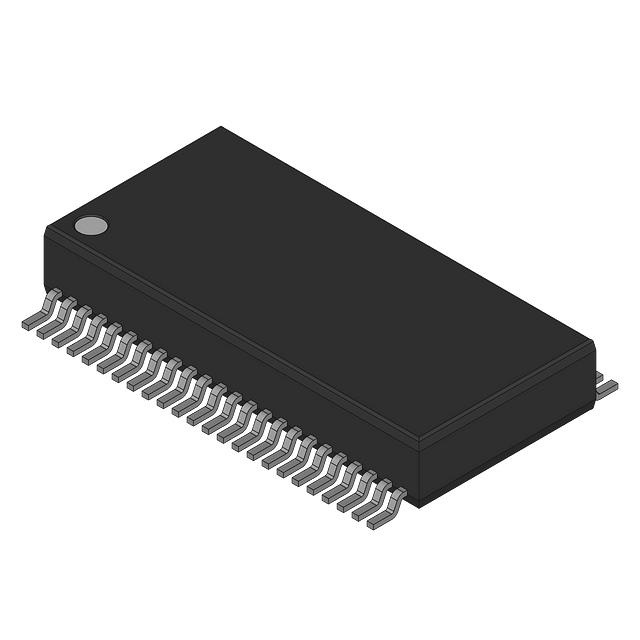

The Nexperia 74LVC16240ADL,112 is a 16-bit inverting buffer and line driver belonging to the LVC logic family. It operates within a supply voltage range of 1.2 V to 3.6 V and features three-state outputs. The device is housed in a 48-pin SSOP package and supports an operating temperature range from -40 °C to +125 °C. It provides high noise immunity and low power consumption, with output drive capabilities specified at ±24 mA. The component complies with JEDEC standards for various voltage levels and includes ESD protection exceeding 2000 V HBM.

Feature Summary

• Provides 16-bit inverting buffering with three-state output control
• Operates across a wide supply voltage range from 1.2 V to 3.6 V
• Features robust ESD protection and high noise immunity
• Supports direct interface with TTL logic levels

Applications

• High-density data bus driving applications
• Clock distribution networks requiring inversion
• Memory interface circuits
• Portable battery-powered equipment

Procurement Notes

Verify the specific ordering code 74LVC16240ADL,112 against official Nexperia documentation to confirm package type and tape/reel specifications. Ensure compatibility with system voltage requirements and thermal management needs. Confirm RoHS compliance status through current datasheets. Validate that the SSOP-48 footprint matches the design layout. Check for any recent product change notices affecting availability or parameters.

Selection Notes

Select this component when a 16-bit inverting buffer with three-state capability is required in a compact SSOP package. It is suitable for systems operating between 1.2 V and 3.6 V where low power consumption and high noise immunity are critical. Consider the -40 °C to +125 °C operating range for industrial or automotive environments. Ensure the design accounts for the inverting logic function and output drive strength requirements.

Part Context

This part belongs to the Nexperia 74LVC series, which offers low-voltage CMOS technology with high speed and low power dissipation. The LVC family is designed for applications requiring operation down to 1.2 V while maintaining compatibility with higher voltage interfaces. The 74LVC16240 variant specifically addresses the need for wide parallel data handling with inversion functionality in space-constrained designs.

Replacement Considerations

Check for equivalent parts such as the 74LVC16240ADGG variant if TSSOP packaging is acceptable instead of SSOP. Verify pinout compatibility before substitution. Ensure that any replacement maintains the same electrical characteristics, including voltage range, drive current, and propagation delay specifications.
