74LVC16241ADGG,118

Overview

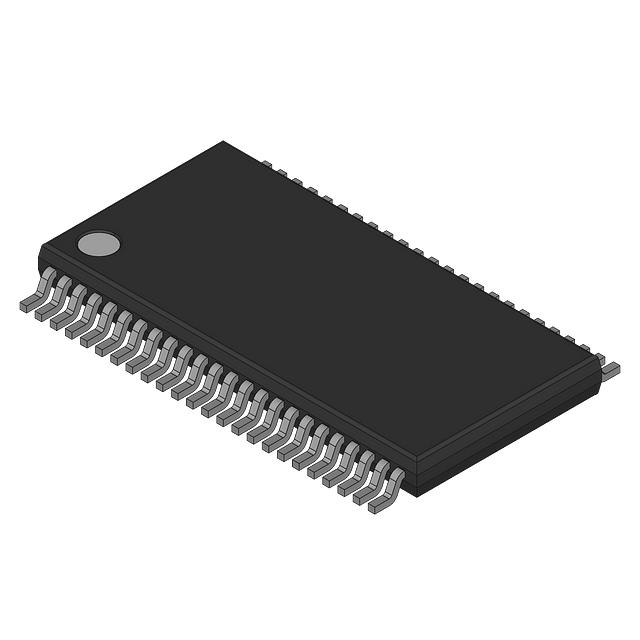

The Nexperia 74LVC16241ADGG,118 is a 16-bit buffer and line driver belonging to the LVC logic family. It features non-inverting logic with four elements of four bits each. The device utilizes a TSSOP-48 package and supports a supply voltage range from 1.2 V to 3.6 V. It provides three-state outputs with high noise immunity and low power consumption. Key electrical parameters include a maximum propagation delay of 12 ns at 1.2 V, output currents of ±24 mA, and a static current of 100 nA. Operating temperatures range from -40 °C to +125 °C.

Feature Summary

• Provides 16-bit buffering with non-inverting logic functionality
• Features five-volt tolerant inputs for interfacing with 5 V logic systems
• Supports wide supply voltage operation from 1.2 V to 3.6 V
• Delivers high noise immunity with low CMOS power dissipation

Applications

• Interfacing between 1.2 V to 3.6 V logic families and 5 V logic systems
• High-speed data bus buffering in portable electronic devices
• Memory address and data line drivers in computing hardware
• General-purpose 16-bit signal transmission in industrial control systems

Procurement Notes

Verify the complete part number including the suffix ,118 to ensure correct tape and reel packaging configuration. Confirm RoHS compliance status through official manufacturer documentation prior to integration. Ensure the selected variant matches the required operating temperature range and package type specifications for your specific design constraints.

Selection Notes

Select this component when designing systems requiring 16-bit non-inverting buffering with mixed-voltage compatibility. It is suitable for applications needing interface between low-voltage cores and 5 V peripherals. Consider the TSSOP-48 package constraints and thermal performance requirements. Verify that the 1.2 V to 3.6 V supply range aligns with your system's power architecture.

Part Context

This device is part of the Nexperia 74LVC series, designed for low-voltage CMOS applications. It serves as a 16-bit version within the LVC buffer family, offering high density and speed. The ADGG suffix indicates the TSSOP-48 surface-mount package. It complements other LVC components by providing robust signal integrity in multi-voltage environments.

Replacement Considerations

Check for direct pin-compatible substitutes within the same LVC family. Verify equivalent electrical characteristics such as propagation delay and output drive strength. Ensure any replacement maintains the 5 V tolerance feature if interfacing with 5 V logic is required.
