74LVC1G00GS,132

Inverter Gates Overview

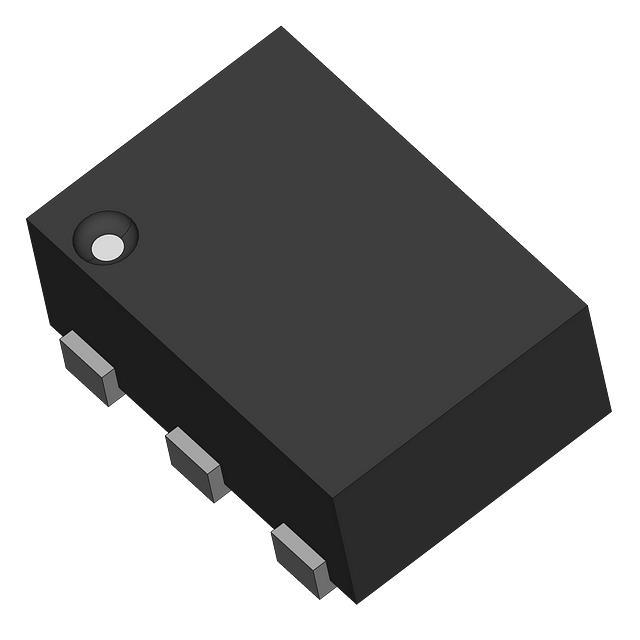

The Nexperia USA Inc. 74LVC1G00GS,132 is a single 2-input NAND gate in the LVC logic family. It operates within a supply voltage range of 1.65 V to 5.5 V and features Schmitt-trigger inputs for noise immunity. The device includes IOFF circuitry for partial power-down mode operation. It utilizes an XSON6 package (SOT1202) with dimensions of 1.0 mm x 1.0 mm x 0.35 mm. Propagation delay ranges from 4.0 ns to 5.5 ns at 5.5 V, with output drive capabilities of ±24 mA at 3.0 V.

Inverter Gates Feature Summary

• Schmitt-trigger action on all inputs provides tolerance for slower input rise and fall times.
• IOFF circuitry disables outputs during power-down to prevent damaging backflow current.
• Inputs are overvoltage tolerant up to 5.5 V, enabling direct interface with TTL levels.

Inverter Gates Applications

• Mixed 3.3 V and 5 V environments as signal translators
• Partial power-down applications requiring controlled output states
• Digital logic circuits requiring high noise immunity

Inverter Gates Procurement Notes

Verify the specific ordering suffix GS against the manufacturer's latest documentation to confirm the SOT1202 XSON6 package variant. Ensure that design-in requirements align with the specified JEDEC standards and ESD protection ratings provided in the official datasheet before finalizing procurement specifications.

Inverter Gates Selection Notes

Select this component when a single 2-input NAND function is required in extremely thin surface-mount packages. The wide supply voltage range supports various digital logic families. Verify that the thermal dissipation characteristics of the XSON6 package meet the application's power budget constraints under maximum operating temperatures.

Inverter Gates Part Context

This part belongs to the 74LVC1G00 series of single-function gates manufactured by Nexperia. The series offers multiple package options including TSSOP5, SC-74A, and various XSON variants. The GS suffix specifically identifies the XSON6 package type within this broader product line.

Inverter Gates Replacement Considerations

Direct substitutes include other 74LVC1G00 variants from Nexperia such as 74LVC1G00GM or 74LVC1G00GN, provided the package footprint matches the PCB layout. Cross-manufacturer equivalents must be verified for pin compatibility and electrical specifications.
