74LVC1G175GV-Q100H

Overview

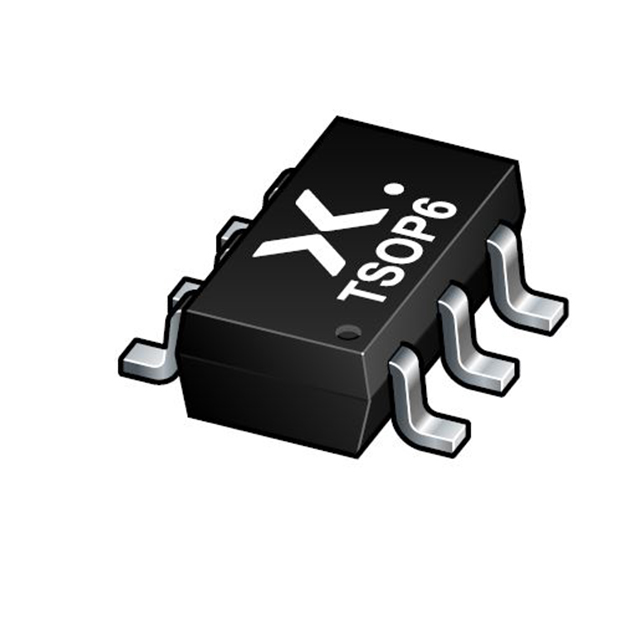

The Nexperia 74LVC1G175GV-Q100H is a single D-type flip-flop with positive-edge triggering, designed for automotive applications under AEC-Q100 Grade 1 qualification. It operates within a supply voltage range of 1.65 V to 5.5 V and supports data rates up to 200 MHz. The device features non-inverting outputs with an output drive capability of ±32 mA at 5 V. It includes reset functionality and is housed in a compact SC-74A-5 (SOT753) surface-mount package. The component ensures robust performance across an ambient temperature range of -40°C to +125°C.

Feature Summary

• Automotive-grade reliability certified to AEC-Q100 standards for extended temperature operation
• High-speed data processing with maximum clock frequencies reaching 200 MHz
• Strong output drive capability supporting direct interfacing with loads requiring high current
• Integrated reset function allowing synchronous control of the flip-flop state

Applications

• Automotive electronic systems requiring qualified logic components
• Data storage and register circuits in embedded controllers
• Timing and synchronization modules in communication interfaces
• State machine implementations in industrial automation

Procurement Notes

Verify the specific suffix GV against the official Nexperia datasheet to confirm the SC-74A-5 package variant. Ensure the Q100 designation aligns with required automotive grade specifications. Confirm RoHS compliance status for the target market regulations. Validate that the lead-free and halogen-free attributes meet project environmental requirements before finalizing procurement orders.

Selection Notes

Select this component when a single-bit storage element with high-speed performance is needed in space-constrained designs. The wide supply voltage range allows compatibility with both 1.8 V and 5 V logic domains. The AEC-Q100 qualification makes it suitable for harsh automotive environments where thermal stability and reliability are critical constraints for system design.

Part Context

This part belongs to the 74LVC family of low-voltage CMOS logic devices. The LVC series is characterized by its ability to operate over a broad voltage spectrum while maintaining compatibility with standard logic levels. The 74LVC1G175 specifically denotes a single D-type flip-flop configuration within this automotive-qualified portfolio.

Replacement Considerations

Check for 74LVC1G175GW-Q100H if TSSOP-6 packaging is acceptable instead of SC-74A-5. Verify functional equivalence with other 74LVC1G175 variants from Nexperia or compatible manufacturers ensuring identical pinout and electrical characteristics.
