74LVC1G80GF,132

Overview

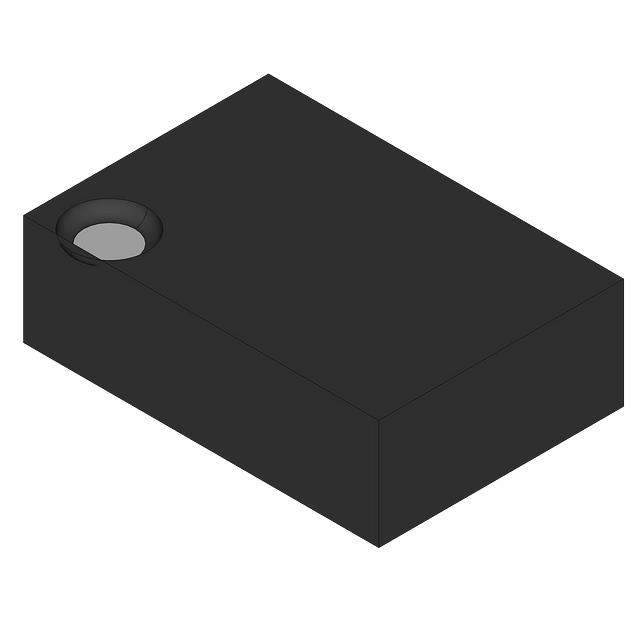

The Nexperia 74LVC1G80GF,132 is a single positive-edge triggered D-type flip-flop belonging to the LVC/LCX/Z series. It features inverted output and operates within a supply voltage range of 1.65V to 5.5V. The component utilizes a 6-pin VSON (SOT891) surface-mount package with dimensions of 1 mm x 1 mm. It supports a maximum clock frequency of 400 MHz and exhibits a propagation delay of 4 ns at 5V with 50pF load. Operating temperatures range from -40°C to +125°C, with static current consumption of 200 µA.

Feature Summary

• Positive-edge triggered data transfer mechanism
• Inverted output configuration
• Wide operating voltage compatibility
• High-speed signal processing capability

Applications

• Data storage in digital logic circuits
• Shift register construction
• Timing synchronization systems
• State machine implementation

Procurement Notes

Verify the specific suffix '132' against official Nexperia documentation to confirm the XSON-6 packaging variant, as datasheets may list alternative packages like TSSOP or VSON for the base part number. Ensure compliance with RoHS3 standards and check for any recent Product Change Notifications regarding assembly transfers or label changes that might affect physical characteristics.

Selection Notes

Select this component when a compact, low-voltage D-type flip-flop with inverted output is required. Consider the 400 MHz clock speed and 4 ns propagation delay for high-frequency applications. Verify that the 1.65V to 5.5V supply range aligns with system power rails and that the 6-pin VSON footprint fits the PCB layout constraints.

Part Context

This device is part of the Nexperia 74LVC1G80 family of single D-type flip-flops. It shares functional similarities with other members like the 74LVC1G80GW but differs in packaging. The LVC series is designed for low-power applications while maintaining CMOS-compatible input/output levels, suitable for mixed-voltage environments.

Replacement Considerations

Direct substitutes include the 74LVC1G80GN,132 (XSON-6 package) and the 74LVC1G80GW,125 (TSSOP-5 package). Verify pinout compatibility and package dimensions before substitution, as physical footprints differ between VSON, XSON, and TSSOP variants.
