74LVC1G80GM,115

Overview

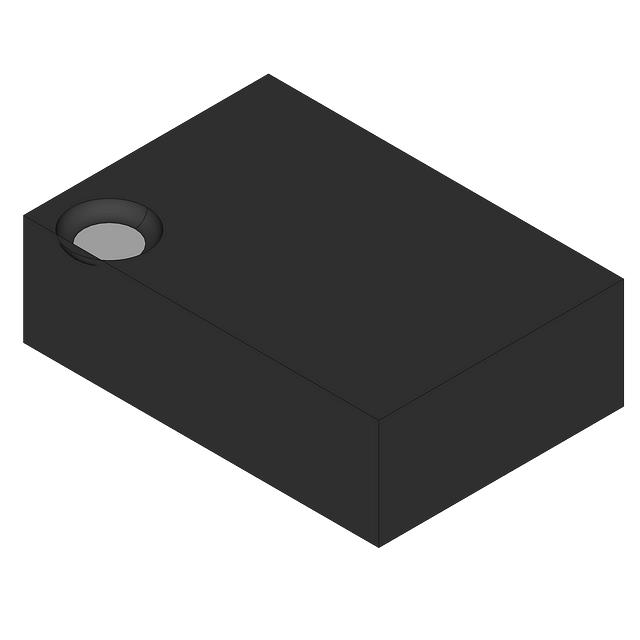

The Nexperia 74LVC1G80GM,115 is a single positive-edge triggered D-type flip-flop from the 74LVC family. It operates within a supply voltage range of 1.65 V to 5.5 V and supports mixed 3.3 V and 5 V environments. The device features I OFF circuitry for partial power-down applications, preventing damaging backflow currents. It is housed in an XSON6 surface-mount package with dimensions of 1.45 mm by 1 mm.

Feature Summary

• Positive-edge triggered D-type flip-flop functionality
• I OFF circuitry prevents backflow current during partial power-down
• Compatible with 3.3 V and 5 V driving devices

Applications

• Mixed 3.3 V and 5 V digital logic systems
• Data storage and synchronization circuits
• Partial power-down applications requiring output isolation

Procurement Notes

Verify the exact part number suffix against official Nexperia documentation to confirm the specific package variant and tape/reel configuration. Ensure that the ordering code matches the required pinout and mechanical specifications for your PCB layout. Cross-reference the datasheet revision date to confirm compliance with current manufacturing standards and material declarations before finalizing procurement.

Selection Notes

Select this component when a single-bit storage element with positive-edge triggering is required in low-voltage designs. It is suitable for applications needing compatibility between 3.3 V and 5 V logic levels without additional level shifting. Consider the XSON6 package for space-constrained surface-mount designs requiring robust electrical performance across a wide temperature range.

Part Context

This device belongs to the 74LVC1Gxx series of single-function logic ICs manufactured by Nexperia. The LVC series is designed for low-voltage applications ranging from 1.65 V to 5.5 V. The 74LVC1G80 specifically implements a D-type flip-flop function, distinguishing it from gates or buffers within the same family. It shares common interface characteristics with other single-gate LVC components.

Replacement Considerations

Public confirmed substitute part numbers include 74LVC1G80GW,125 and 74LVC1G80GF.
