74LVC1G80GM,132

Overview

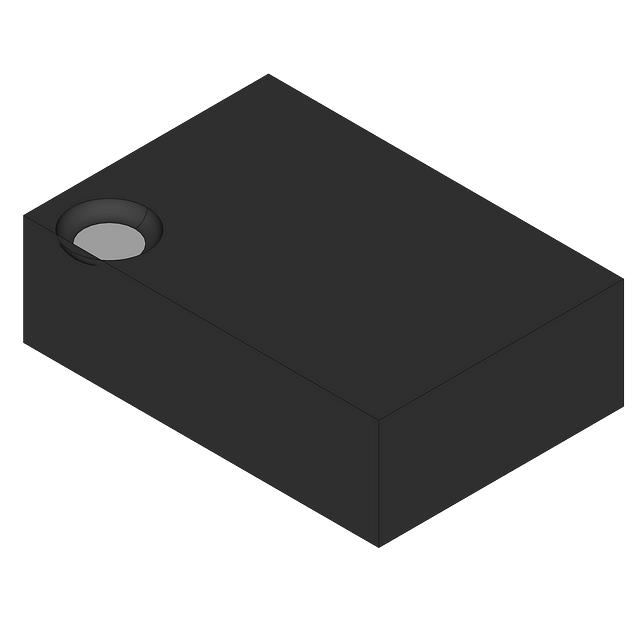

The Nexperia 74LVC1G80GM,132 is a single positive-edge triggered D-type flip-flop housed in a 6-lead XSON package. It operates within a supply voltage range of 1.65 V to 5.5 V and supports data rates up to 400 MHz. The device features low static current consumption and includes I_OFF circuitry for partial power-down applications. It is designed for surface-mount installation and functions reliably across an extended temperature range from -40°C to +125°C.

Feature Summary

• Positive-edge triggered D-type flip-flop architecture
• I_OFF circuitry prevents damaging backflow current during partial power-down
• Inputs compatible with 3.3 V and 5 V driving devices

Applications

• Mixed 3.3 V and 5 V digital environments
• Partial power-down system configurations
• High-speed data storage and transfer circuits

Procurement Notes

Verify the specific suffix '132' corresponds to the XSON-6 (SOT886) package variant when sourcing. Confirm that the required I_OFF functionality aligns with the design intent for partial power-down scenarios. Ensure input drivers are compatible with the specified voltage levels to guarantee predictable operation on clock transitions.

Selection Notes

Select this component for applications requiring a single-bit storage element with high-speed performance and flexible voltage compatibility. The XSON package offers a compact footprint suitable for space-constrained designs. Consider the operating temperature range and propagation delay characteristics relative to the target system timing requirements.

Part Context

This part belongs to the 74LVC family of logic integrated circuits, which are optimized for low-voltage operation. The 74LVC1G80 series specifically provides D-type flip-flop functionality in ultra-small packages. The GM suffix indicates the XSON-6 package type, distinguishing it from other pinout or package variations within the same logical function family.

Replacement Considerations

Direct substitutes include other 74LVC1G80 variants with different packages, such as 74LVC1G80GW or 74LVC1G80GF. Verify pin compatibility and package dimensions before substitution. Cross-reference datasheets to ensure equivalent electrical characteristics and I_OFF capabilities.
