74LVC1GU04GN,132

Inverter Gates Overview

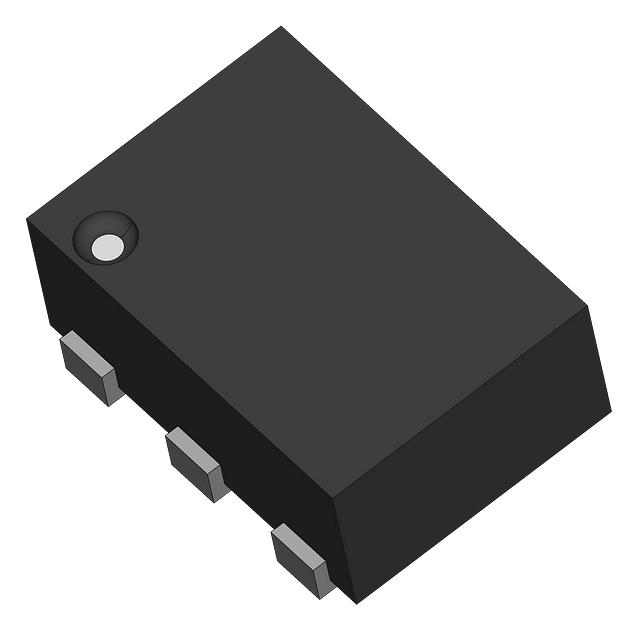

The 74LVC1GU04GN,132 is a single unbuffered inverter from the Nexperia 74LVC logic family. It operates within a supply voltage range of 1.65 V to 5.5 V and supports overvoltage tolerant inputs up to 5.5 V. The device features a propagation delay of 6.5 ns and provides output drive capabilities of ±32 mA. It is housed in an XSON-6 (SOT1115) surface-mount package and functions across an industrial temperature range of -40 °C to +125 °C.

Inverter Gates Feature Summary

• Single-channel CMOS inverter with non-inverting logic function
• Overvoltage tolerant inputs compatible with mixed 3.3 V and 5 V environments
• I_OFF circuitry enables partial power-down mode to prevent damaging backflow current
• High noise immunity with low static and dynamic power dissipation

Inverter Gates Applications

• Signal buffering and inversion in mixed-voltage digital systems
• Level translation between 3.3 V and 5 V logic domains
• General-purpose switching applications requiring low power consumption

Inverter Gates Procurement Notes

Verify the specific suffix GN against the manufacturer's official datasheet to confirm the XSON-6 package type and lead-free compliance status. Ensure the ordering code matches the exact revision required for your PCB footprint. Confirm RoHS3 and REACH regulatory alignment prior to final procurement to meet environmental standards.

Inverter Gates Selection Notes

Select this component when a single inverter is needed for low-power, high-speed signal processing within the LVC voltage range. The XSON-6 package offers space efficiency for compact designs. Consider the I_OFF feature if partial power-down functionality is required to protect downstream components during standby modes.

Inverter Gates Part Context

This part belongs to the 74LVC series, designed for low-voltage CMOS applications. It complements other single-gate logic devices like the 74LVC1G126 buffer and 74LVC1T45 bus transceiver. The series emphasizes low power dissipation and wide operating voltage ranges suitable for portable and battery-powered electronics.

Inverter Gates Replacement Considerations

Direct functional substitutes include the 74LVC1GU04GM,132 (XSON-6 package) and 74LVC1GU04GN/SOT1115 variants. Verify pinout compatibility and thermal characteristics before substitution.
