74LVC273D,112

Overview

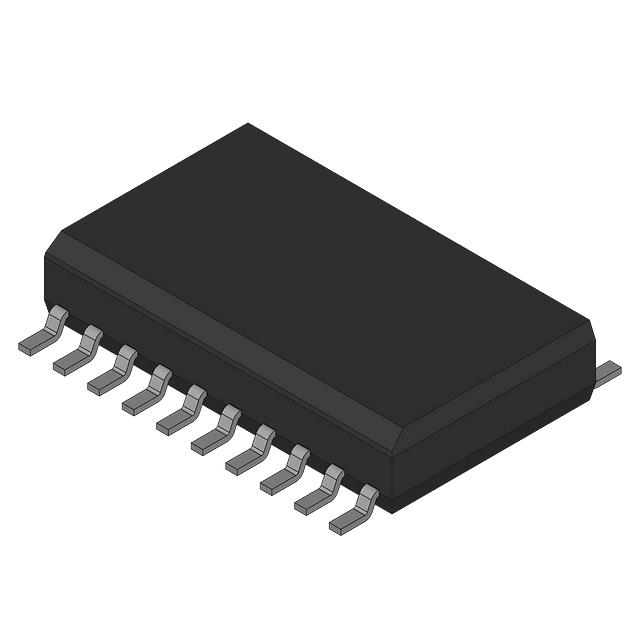

The 74LVC273D,112 is a D-Type Edge Triggered Flip-Flop from the LVC logic series. It contains one circuit with eight input and eight output lines in a non-inverting configuration. The device operates on a single-ended input type within a supply voltage range of 1.2 V to 3.6 V. It features a propagation delay of 6 ns at 3.3 V and provides a high-level output current of -24 mA. Packaged in SOIC-20 for surface mount installation, it functions reliably between -40 C and +125 C.

Feature Summary

• Positive-edge triggered data storage mechanism
• Non-inverting parallel output configuration
• Single-ended input signal processing

Applications

• Parallel-to-serial data conversion circuits
• General-purpose register implementations
• Data buffering applications

Procurement Notes

Verify component authenticity through authorized Nexperia channels or certified distributors. Confirm package integrity and pin alignment upon receipt. Check datasheet revisions for updated electrical characteristics. Ensure storage conditions comply with moisture sensitivity level requirements. Validate part markings against official manufacturer specifications before integration into production systems.

Selection Notes

Evaluate power supply compatibility with the specified 1.2 V to 3.6 V operating range. Assess thermal management needs for the -40 C to +125 C operational window. Consider the SOIC-20 footprint constraints for PCB layout design. Review propagation delay specifications against system timing requirements. Verify interface voltage levels match connected logic components.

Part Context

This component belongs to the 74LVC family of low-voltage CMOS logic devices. It implements standard D-type flip-flop functionality within an integrated circuit format. The device supports digital data retention and transfer operations in modern electronic systems requiring reliable state storage capabilities.

Replacement Considerations

74LVC273D,118
