74LVC2G126GT/S500115

Overview

The 74LVC2G126GT is a dual non-inverting buffer and line driver featuring three-state outputs controlled by active HIGH enable inputs (1OE, 2OE). It operates within a supply voltage range of 1.65 V to 5.5 V and utilizes Schmitt-trigger inputs for noise immunity. The device incorporates IOFF circuitry to prevent backflow current during partial power-down states. It supports direct interfacing with TTL levels and complies with JEDEC standards for various voltage domains.

Feature Summary

• Dual non-inverting buffers with three-state outputs
• IOFF circuitry prevents backflow current in partial power-down mode
• Schmitt-trigger inputs provide tolerance for slow rise and fall times
• Inputs tolerate voltages up to 5.5 V for mixed 3.3 V and 5 V environments

Applications

• Mixed 3.3 V and 5 V bus translation
• Partial power-down applications requiring backflow protection
• High-noise immunity signal buffering

Procurement Notes

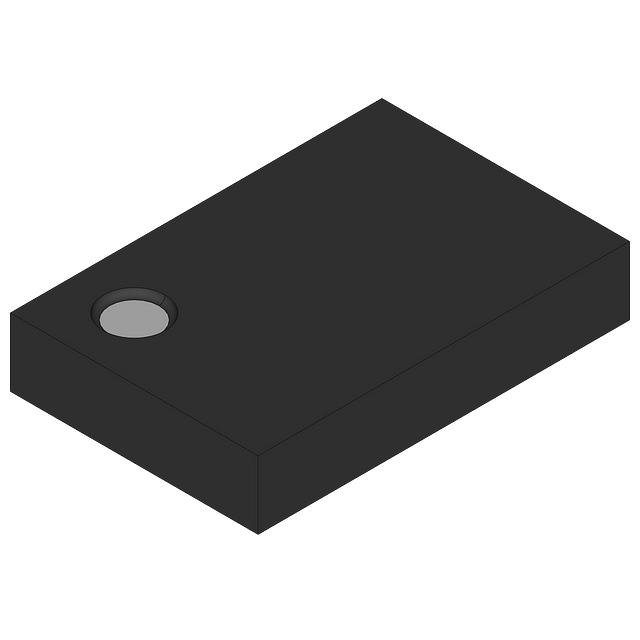

Verify the specific package variant against the datasheet ordering information table. Confirm that the suffix corresponds to the XSON8 (SOT833-1) package dimensions. Ensure the temperature range matches the required operational environment specifications.

Selection Notes

Select this component when a dual buffer with three-state control is required for low-voltage logic families. The wide supply range allows compatibility across multiple voltage domains. Verify input transition rates against the recommended operating conditions to ensure proper Schmitt trigger functionality.

Part Context

This part belongs to the 74LVC logic family, designed for low-voltage CMOS applications. It serves as a standard interface solution for bidirectional data buses where isolation or level shifting between different voltage supplies is necessary.

Replacement Considerations

Public confirmed substitute: 74LVC2G125.
