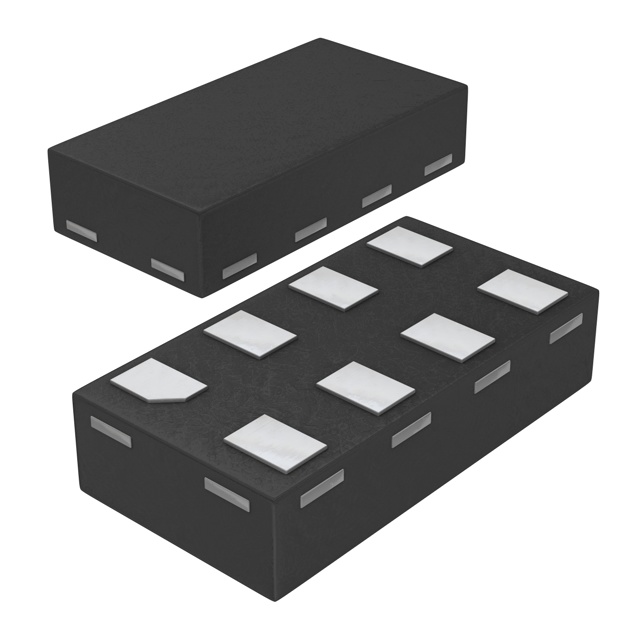

74LVC2G74GF,115

Overview

The Nexperia 74LVC2G74GF,115 is a dual D-type flip-flop with set and reset functions housed in an XSON8 package. It operates within a supply voltage range of 1.65 V to 5.5 V. The device features low static power consumption and overvoltage tolerant inputs up to 5.5 V. It supports partial power-down mode via I_OFF circuitry, which disables outputs to prevent damaging backflow currents. The component is specified for operation across temperatures from -40 °C to +125 °C.

Feature Summary

• Dual D-type flip-flops with asynchronous active-low set and reset inputs
• I_OFF circuitry enables safe partial power-down applications
• Overvoltage tolerant inputs allow interfacing with 5 V logic devices
• Schmitt-trigger action provides tolerance for slow input rise and fall times

Applications

• Parallel-to-serial data conversion circuits
• Shift register implementations
• Timing delay elements in digital systems
• State storage in microcontroller peripheral interfaces

Procurement Notes

Verify the specific suffix GF,115 against the official Nexperia datasheet to confirm the XSON8 package configuration. Ensure that design requirements align with the specified operating temperature range and voltage limits. Confirm compliance with RoHS and REACH regulations as stated in the product environmental documentation before finalizing procurement orders.

Selection Notes

Select this component when a compact dual D-type flip-flop solution is required for mixed-voltage environments. The wide supply voltage range and overvoltage tolerant inputs make it suitable for translating between different logic levels. Consider the XSON8 package for space-constrained surface-mount designs requiring high thermal performance.

Part Context

This part belongs to the Nexperia 74LVC family of logic integrated circuits. The LVC series is designed for low-voltage CMOS applications, offering compatibility with both 3.3 V and 5 V systems. The 74LVC2G74 variant specifically provides two independent D-type flip-flops with set and reset capabilities within a single small outline package.

Replacement Considerations

74LVC2G74DP,118
