74LVC74ADB,112

Overview

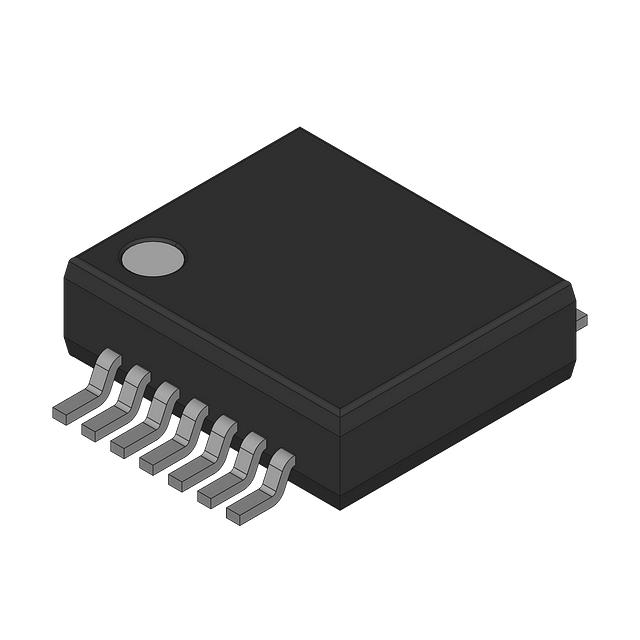

The 74LVC74ADB,112 is a dual D-type flip-flop with set and reset functions manufactured by Nexperia. It operates within a supply voltage range of 1.2 V to 3.6 V and features Schmitt trigger inputs for noise tolerance. The device provides complementary outputs and supports asynchronous active-low set and reset signals independent of the clock. It is housed in an SSOP-14 package and specified for industrial temperature ranges up to +125 °C.

Feature Summary

• Dual D-type flip-flops with individual data, clock, set, and reset inputs
• Asynchronous active-low set and reset operations
• Schmitt trigger action at all inputs for improved noise immunity
• Complementary nQ and Q outputs

Applications

• Data storage and register applications
• Timing and synchronization circuits
• State machine implementations
• Digital signal processing systems

Procurement Notes

Verify component authenticity through authorized Nexperia distributors or official channels. Confirm RoHS compliance status and check current production lifecycle status as availability may vary. Ensure proper handling procedures are followed during storage and assembly to maintain device integrity.

Selection Notes

Select this component when dual edge-triggered D-type flip-flops with set/reset capabilities are required. Consider its wide supply voltage range and Schmitt trigger inputs for robust performance in noisy environments. Verify package compatibility and thermal requirements for the specific application design.

Part Context

This part belongs to the 74LVC74A series of logic integrated circuits from Nexperia. It is designed for low-voltage CMOS applications and offers high noise immunity. The series complies with JEDEC standards for various voltage levels and includes ESD protection features suitable for modern digital designs.

Replacement Considerations

SN74LVC74ADBR from Texas Instruments is a confirmed substitute part number.
