74LVCE1G00FZ4

Inverter Gates Overview

The 74LVCE1G00FZ4-7 is a single 2-input positive NAND gate from Diodes Incorporated, designed for operation with a power supply range of 1.4V to 5.5V. It features standard totem pole outputs and inputs tolerant to 5.5V, enabling use in mixed voltage environments. The device includes IOFF circuitry to disable the output during partial power-down applications, preventing damaging current backflow. It offers switching speed characterized for operation at 1.5V and provides ±24mA output drive at 3.3V.

Inverter Gates Feature Summary

• Supports partial-power-down mode operation using IOFF circuitry to prevent damaging current backflow when powered down.
• Inputs accept up to 5.5V, allowing direct interface with TTL levels and use in mixed voltage environments.
• Provides extended supply voltage range from 1.4V to 5.5V with CMOS low power consumption.

Inverter Gates Applications

• Voltage level shifting
• General purpose logic
• PCs, networking, notebooks, netbooks, PDAs
• Computer peripherals, hard drives, CD/DVD ROM
• TV, DVD, DVR, set top box

Inverter Gates Procurement Notes

Verify the specific package code FZ4 corresponds to the DFN1410 footprint before procurement. Confirm that the -7 suffix indicates tape and reel packaging with a quantity of 5000 units per reel. Ensure the design accommodates the recommended pad layout specified in document AP02001 for proper thermal and electrical performance.

Inverter Gates Selection Notes

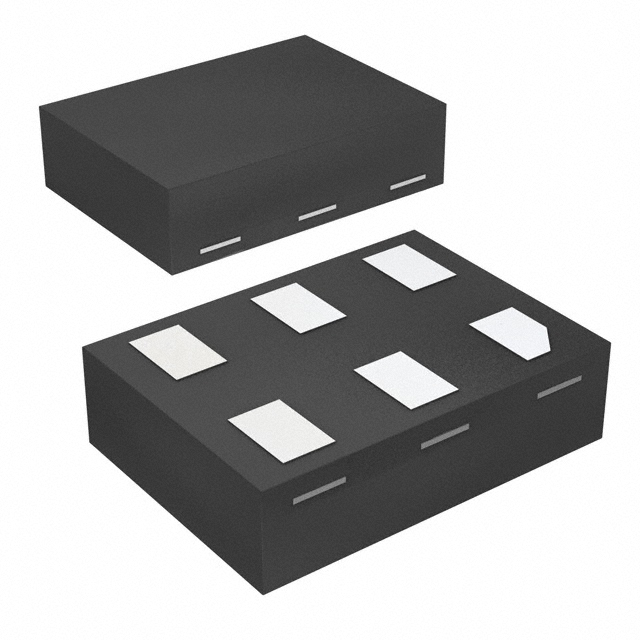

Select this component when a single 2-input NAND gate is required within a 1.4V to 5.5V operating range. It is suitable for mixed voltage systems due to its 5.5V input tolerance. Consider the DFN1410 package for compact surface-mount designs requiring green molding compound without bromine or antimony.

Inverter Gates Part Context

This part belongs to the 74LVCE1G series of single-function gates manufactured by Diodes Incorporated. It is part of the broader 74LVC family, offering enhanced speed characteristics compared to standard LVC devices at lower voltages like 1.8V. The series supports various small outline packages including SOT25, SOT353, and DFN1410.

Inverter Gates Replacement Considerations

Check datasheet compatibility for pinout and electrical specifications if substituting with other 74LVCE1G00 variants from different manufacturers. Verify package dimensions match the existing PCB land pattern, particularly for the DFN1410 configuration.
