74LVT16374ADGG,112

Overview

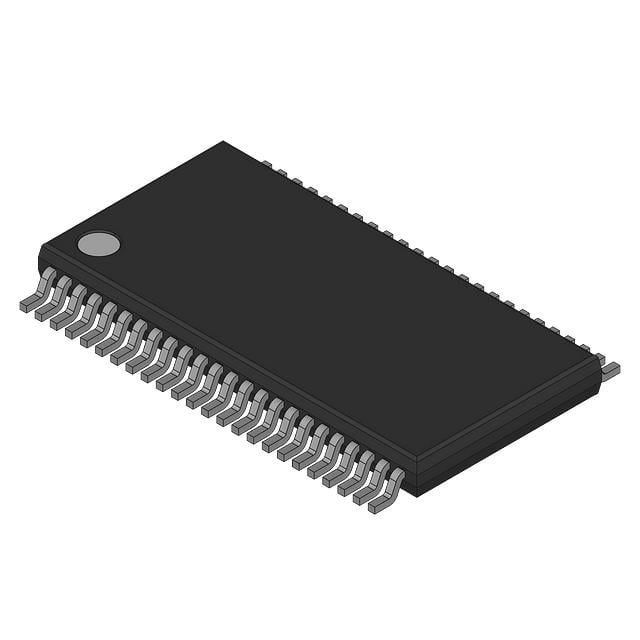

The Nexperia 74LVT16374ADGG,112 is a dual 8-bit D-type flip-flop with positive-edge triggering, belonging to the LVT logic series. It utilizes BiCMOS technology and features single-ended, non-inverting inputs. The device operates within a supply voltage range of 2.7 V to 3.6 V and exhibits a propagation delay of 3 ns. It provides high-level output current capability of -32 mA and includes 8 input and 8 output lines per circuit. Packaged in a TSSOP-48 (SOT362) surface-mount format, it supports operation from -40 °C to +85 °C.

Feature Summary

• Dual 8-bit architecture providing two independent positive-edge triggered D-type flip-flops.
• BiCMOS logic construction ensuring fast switching speeds with low power consumption.
• High drive capability with specified output current characteristics for robust signal integrity.
• Single-ended input configuration with non-inverting polarity for straightforward interface integration.

Applications

• Parallel data storage and buffering in digital systems
• Interface bridging between different voltage domains
• Register files in microcontroller-based designs

Procurement Notes

Verify the specific ordering suffix against the manufacturer's official documentation to confirm package type and tape/reel specifications. Ensure the requested variant matches the required thermal and electrical ratings for the target application environment. Cross-reference the component marking code with the datasheet to authenticate the source and prevent counterfeit procurement risks during sourcing.

Selection Notes

Select this component when a dual 8-bit register solution is required within the 3.3 V logic family. The TSSOP-48 package offers a balance of pin count and board space efficiency. Consider the 3 ns propagation delay for timing-critical paths and verify that the -32 mA output drive meets the load requirements of the destination circuitry without exceeding absolute maximum ratings.

Part Context

This part belongs to the 74LVT series of 3.3 V logic devices, designed for high-speed applications requiring low power dissipation. The 74LVT16374 specifically implements edge-triggered flip-flop functionality, distinguishing it from latches or buffers within the same logical family. It serves as a fundamental building block for sequential logic circuits in consumer electronics and industrial control systems.

Replacement Considerations

Publicly confirmed substitute part numbers include SN74LVTH16374DGGR from Texas Instruments. Verify pinout compatibility and electrical parameter alignment before substitution.

FAQ

What is the logic family classification for this component?

It belongs to the LVT (Low-Voltage TTL) series utilizing BiCMOS technology.

Does the device support partial power-down mode?

The provided documentation does not specify I_OFF circuitry or partial power-down capabilities for this specific part number.
