Product Detailed Parameters
- Description：IC FF D-TYPE DUAL 8BIT 48SSOP
- Series：*
- Mfr：Nexperia USA Inc.
- Package：Bulk
- Function：-
- Type：-
- Output Type：-
- Number of Elements：-
- Number of Bits per Element：-
- Clock Frequency：-
- Max Propagation Delay @ V, Max CL：-
- Trigger Type：-
- Current - Output High, Low：-
- Voltage - Supply：-
- Current - Quiescent (Iq)：-
- Operating Temperature：-
- Mounting Type：-
- Supplier Device Package：-
- Package / Case：-
- Input Capacitance：-
- Grade：-
- Qualification：-
Download product information
Overview

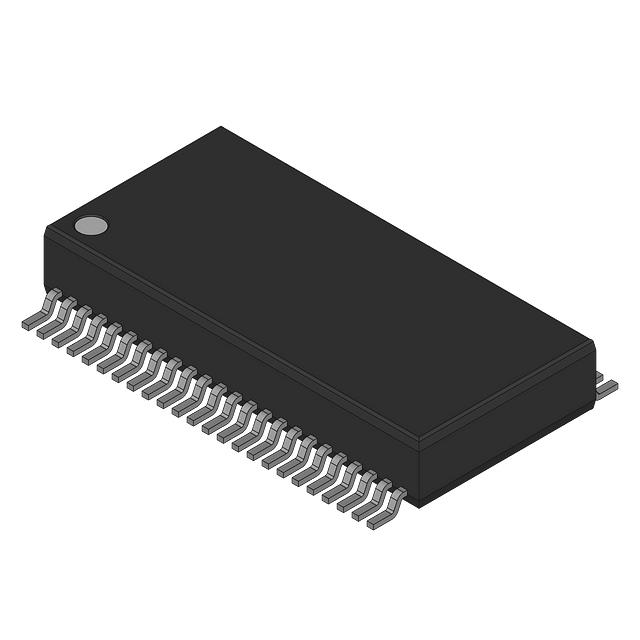

The Nexperia 74LVT16374ADL,118 is a 16-bit D-type flip-flop with 3-state outputs, part of the LVT logic family. It operates within a supply voltage range of 2.7 V to 3.6 V and features non-inverting inputs. The device provides high noise immunity and low power consumption, suitable for portable applications. It is housed in a 48-pin SSOP package and supports surface-mount installation. The component is designed for edge-triggered data storage with reliable performance across specified temperature ranges.
Feature Summary
- Provides 16-bit data storage capability via dual 8-bit D-type flip-flops
- Features 3-state outputs for efficient bus-oriented memory operations
- Ensures high noise immunity and low power dissipation for portable designs
Applications
- Bus-oriented memory implementations
- Register applications requiring 16-bit word width
- Portable equipment with strict power constraints
Procurement Notes
Verify current availability status as this component may be subject to end-of-life restrictions or discontinuation by the manufacturer. Confirm package integrity and RoHS compliance through official datasheets before integration. Check for authorized distributor channels as standard stock levels may be limited due to production lifecycle changes.
Selection Notes
Select this component when a 16-bit parallel interface with tri-state control is required. Ensure the system voltage aligns with the 2.7 V to 3.6 V operating range. Consider the 48-SSOP footprint for PCB layout compatibility. Verify timing requirements against the specific propagation delay specifications at the target supply voltage.
Part Context
This device belongs to the Nexperia 74LVT series, which offers high-speed operation with low power consumption. It is designed for applications requiring robust digital logic functions in compact packages. The LVT family is widely used in consumer electronics and industrial systems where reliability and space efficiency are critical design factors.
Replacement Considerations
Publicly confirmed substitute part numbers include 74LVT16374ADGG,118 from Nexperia. Other potential alternatives found in market listings include onsemi 74LVT16374MEA and Texas Instruments SN74LVTH16374DGGR, though direct pin-to-pin compatibility should be verified against official datasheets.
