74LVT16374AEV,157

Overview

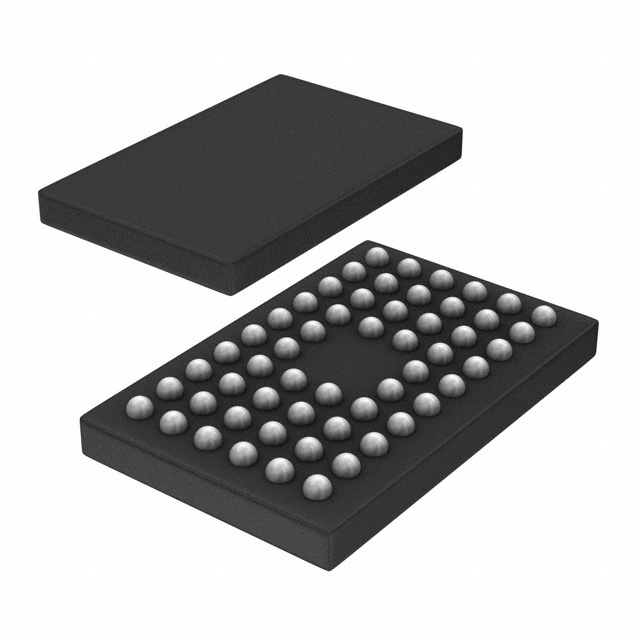

The 74LVT16374AEV,157 is a dual 8-bit D-type edge-triggered flip-flop manufactured by Nexperia (formerly NXP USA Inc.). It operates within a supply voltage range of 2.7 V to 3.6 V and features non-inverting outputs with three-state capability. The device provides high drive strength with an output current of -32 mA and achieves a propagation delay of 3 ns at 3.3 V. Designed for surface-mount applications, it supports single-ended inputs and is housed in a VFBGA-56 package. The component functions reliably across an operating temperature range from -40°C to +85°C.

Feature Summary

• Dual 8-bit architecture providing two independent data storage channels
• Three-state outputs enabling efficient bus line driving and isolation
• High-speed performance with low propagation delay characteristics
• Robust drive capability suitable for demanding load conditions

Applications

• Parallel data buffering in digital systems
• Interface logic between microprocessors and peripheral devices
• Clock domain crossing synchronization circuits
• Data register stages in communication protocols

Procurement Notes

Verify the specific suffix '157' against official Nexperia documentation to confirm tape-and-reel packaging details. Confirm RoHS compliance status and check for obsolescence notices, as this series may be transitioning to newer manufacturing lines. Ensure the supplier provides valid traceability documents matching the exact part number designation.

Selection Notes

Select this component when a dual 8-bit storage solution with high-speed operation is required. It is suitable for designs needing strong output drive on 3.3 V buses. Consider the VFBGA-56 package constraints for PCB layout. Verify that the input voltage levels match the system logic standards before integration into the circuit design.

Part Context

This device belongs to the LVT logic family, optimized for low-voltage CMOS applications. It serves as a standard storage element in digital electronics, replacing older TTL equivalents with lower power consumption. The 74LVT16374 variant specifically offers enhanced speed compared to standard LVT parts, making it appropriate for high-frequency data handling tasks in modern electronic equipment.

Replacement Considerations

Public confirmed substitute part numbers include 74LVT16374AEV/G,55 and 74LVT16374AEV,118. These alternatives share identical electrical specifications and pinout configurations. Verify package compatibility and ordering suffixes when sourcing replacements to ensure functional equivalence.
