750311650

Overview

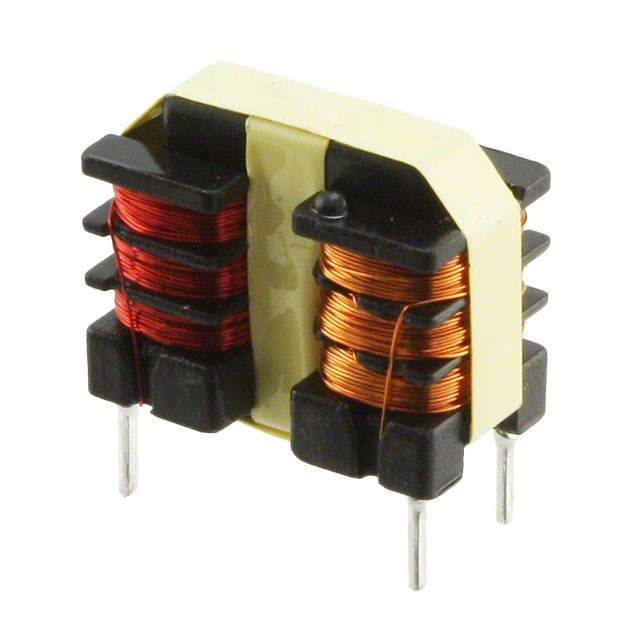

The Würth Elektronik 750311650 is a through-hole common mode choke belonging to the MID-D11 series. It features a dual-line configuration with an inductance of 45 mH and a rated current of 180 mA. The component exhibits a DC resistance of 10.05 Ohms and utilizes a leaded mounting style for PCB integration.

Feature Summary

• Dual-line construction for effective noise suppression
• Through-hole technology for secure mechanical attachment
• High inductance value for low-frequency filtering

Applications

• Common mode noise filtering in signal lines
• EMI suppression in industrial control circuits
• Data line protection in communication interfaces

Procurement Notes

Verify the specific package type and pin configuration against the official datasheet before ordering. Confirm that the through-hole mounting style aligns with your PCB design constraints. Ensure the 180 mA current rating meets the operational requirements of your target circuit application.

Selection Notes

Select this component when high inductance is required for low-frequency noise attenuation. The through-hole format is suitable for applications requiring robust mechanical stability. Evaluate the 10.05 Ohm DC resistance impact on signal integrity within the specific circuit context.

Part Context

This part belongs to the MID-D11 series of common mode chokes from Würth Elektronik. These components are designed for general-purpose EMI suppression. The series offers various inductance values and current ratings to suit different filtering needs across electronic systems.

Replacement Considerations

Consult manufacturer cross-reference lists for verified substitutes. Ensure replacement parts match the 45 mH inductance, 180 mA rating, and through-hole footprint dimensions.
