Product Detailed Parameters
- Description：CMC 10MH 1A 2LN TH
- Series：MID-DC16US
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：1A
- DC Resistance (DCR) (Max)：449mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.900" L x 0.550" W (22.86mm x 13.97mm)
- Height (Max)：0.551" (14.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：10 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview

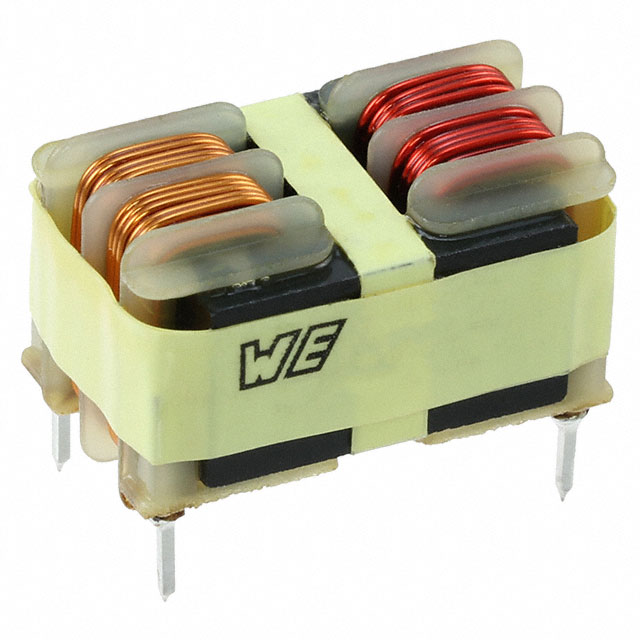

The Würth Elektronik 750314978 is a through-hole common mode choke belonging to the MID-DC16US series. It features an EE16.5/6.5/9 core geometry and provides a nominal inductance of 10 mH. The component supports a current rating of 1 A and operates with two lines. Designed for surface mounting via vertical pins, it offers unshielded construction suitable for PCB integration.
Feature Summary
- Through-hole vertical pin configuration for board mounting
- EE16.5/6.5/9 core structure providing 10 mH inductance
- Unshielded design optimized for specific EMI filtering needs
Applications
- Common mode noise suppression in power supply circuits
- EMI filtering for data lines requiring 1 A current handling
- Signal integrity protection in industrial electronic assemblies
Procurement Notes
Verify the specific datasheet version for mechanical dimensions and thermal characteristics before finalizing the layout. Confirm that the through-hole vertical pin style matches the target PCB footprint requirements. Ensure the 1 A current rating aligns with the operational load to prevent saturation. Cross-reference the EE16.5/6.5/9 core specifications with system EMI performance goals.
Selection Notes
Select this component when a 10 mH common mode choke with a 1 A rating is required for through-hole assembly. The unshielded nature may influence placement relative to sensitive components. Consider the vertical pin height and EE16.5/6.5/9 form factor for spatial constraints on the printed circuit board.
Part Context
This part belongs to the Würth Elektronik MID-DC16US series of common mode chokes. These components utilize ferrite cores to attenuate high-frequency noise. The series is designed for robust performance in various electronic applications requiring reliable electromagnetic interference mitigation through standard through-hole mounting techniques.
FAQ
What is the physical mounting style of the 750314978?
It uses a through-hole vertical pin mounting style.
Does the 750314978 have magnetic shielding?
No, it is an unshielded common mode choke.
