750314979

Overview

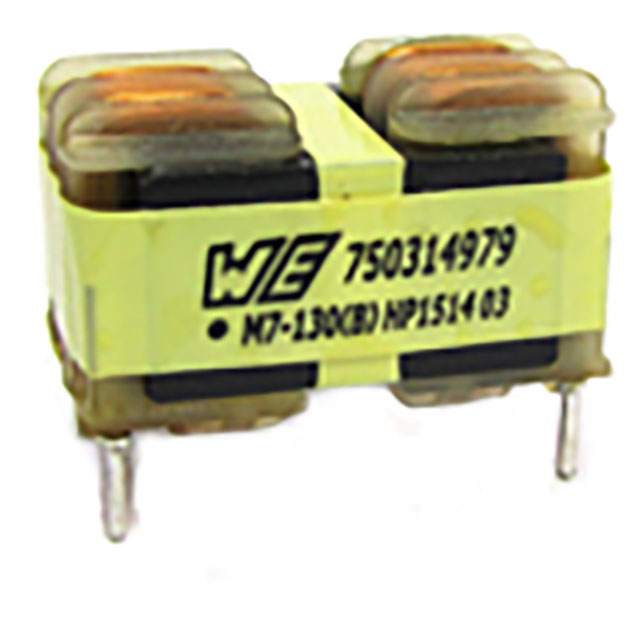

The Würth Elektronik 750314979 is a through-hole common mode choke belonging to the MID-DC16US series. It features an EE16.5/6.5/9 core configuration and provides 15 mH inductance at 10 kHz. The component supports a current rating of 850 mA with a DC resistance of 684 mOhm. Designed for two-line applications, it utilizes a through-hole mounting style suitable for robust circuit integration.

Feature Summary

• Provides effective common mode noise suppression for dual-line circuits
• Utilizes an EE16.5/6.5/9 core structure for stable magnetic performance
• Supports through-hole mounting for secure mechanical attachment

Applications

• Common mode noise filtering in power supply lines
• Signal integrity protection in data transmission interfaces
• EMI suppression in industrial control equipment

Procurement Notes

Verify the specific datasheet version for the 750314979 component to confirm exact electrical tolerances and thermal characteristics. Ensure that the through-hole footprint dimensions align with the target PCB layout requirements. Cross-reference the manufacturer's documentation for any recent design changes or compliance updates before finalizing procurement decisions.

Selection Notes

Select this component when a high-inductance common mode choke is required for low-current applications up to 850 mA. The through-hole construction offers superior mechanical stability compared to surface-mount alternatives. Consider the 684 mOhm DC resistance impact on overall circuit efficiency during initial design phases.

Part Context

This component is part of Würth Elektronik's MID-DC16US series of common mode chokes. The series is engineered for general-purpose EMI filtering tasks. The EE16.5/6.5/9 core geometry allows for compact integration while maintaining high inductance values in a through-hole package format.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
