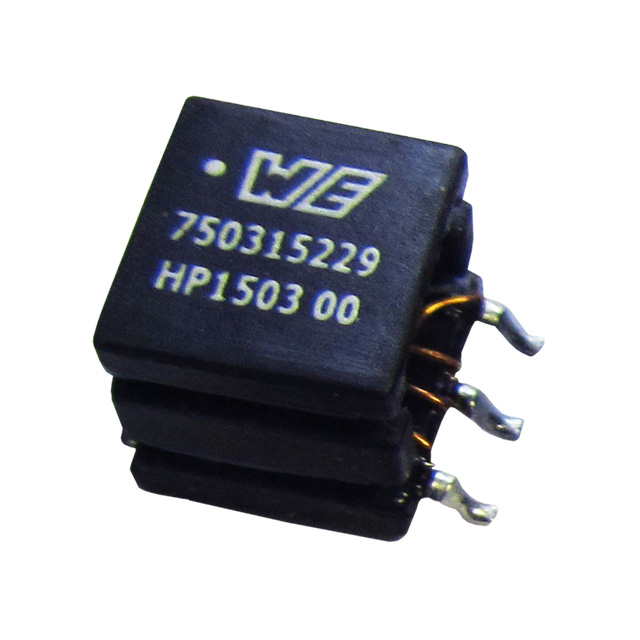

750315229

$3.12

Description：XFMR FWD P-P SMD
Series：MID-PPMAX
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:001cb4c9e157 Category: Switching Converter, SMPS Transformers Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR FWD P-P SMD
Series：MID-PPMAX
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：-
Applications：Forward, Push-Pull Converters
Intended Chipset：-
Chipset Manufacturer：-
Voltage - Primary：-
Voltage - Auxiliary：-
Voltage - Isolation：-
Inductance @ Frequency：-
Frequency：-
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount
Size / Dimension：0.360" L x 0.315" W (9.14mm x 8.00mm)
Height - Seated (Max)：0.300" (7.62mm)
Footprint：-
Style：-
Grade：-
Qualification：-

Download product information

750315229

Overview

The Würth Elektronik 750315229 is a surface-mount transformer designed for forward and push-pull switching mode power supply (SMPS) converters. It provides electrical isolation and operates within a frequency range of 50 to 200kHz. The component features an inductance of 384µH and supports a primary voltage of 5V with a secondary voltage of 5V. It is rated for a power handling capacity of 1W and functions reliably across a temperature range of -40°C to +125°C.

Feature Summary

Engineered specifically for forward and push-pull converter topologies
Provides galvanic isolation between input and output circuits
Optimized for high-frequency operation up to 200kHz
Designed for compact surface-mount PCB integration

Applications

Forward converter power supplies
Push-pull DC/DC conversion systems
Isolated SMPS modules
Industrial control power units

Procurement Notes

Verify the manufacturer part number 750315229 against official Würth Elektronik documentation to ensure authenticity. Confirm that the specific package dimensions and pinout match your design requirements. Check RoHS compliance status and moisture sensitivity level before procurement. Ensure the supplier provides valid traceability documents.

Selection Notes

Select this component when designing isolated power stages requiring forward or push-pull architectures. Consider the 1W power rating and 5V to 5V voltage transformation ratio. Evaluate the 384µH inductance value against your circuit's energy storage needs. Verify compatibility with the intended operating frequency range and thermal environment.

Part Context

This transformer belongs to the MID-PPMAX series by Würth Elektronik, which targets miniature power applications. It utilizes the MAX14855 chipset architecture for optimized performance. The series focuses on providing reliable isolation in small form factors suitable for modern electronic devices.
