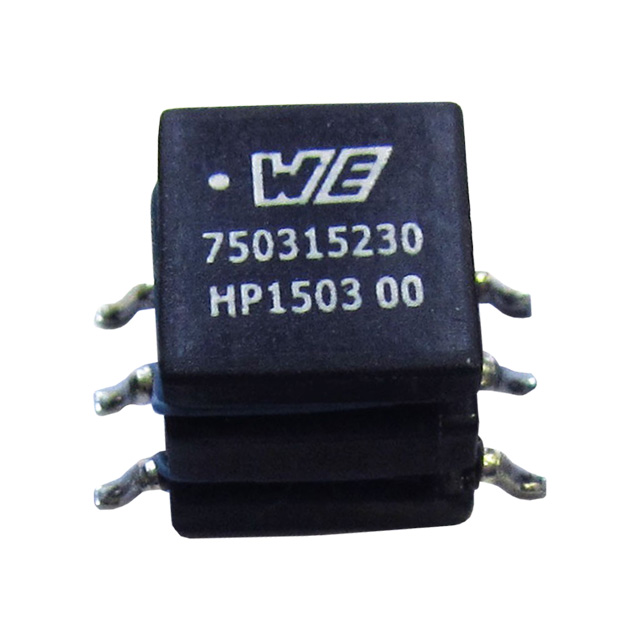

750315230

$2.78

Description：XFMR FWD P-P SMD
Series：MID-PPMAX
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:4ba7652d6c2c Category: Switching Converter, SMPS Transformers Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR FWD P-P SMD
Series：MID-PPMAX
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：-
Applications：Forward, Push-Pull Converters
Intended Chipset：-
Chipset Manufacturer：-
Voltage - Primary：-
Voltage - Auxiliary：-
Voltage - Isolation：-
Inductance @ Frequency：-
Frequency：-
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount
Size / Dimension：0.360" L x 0.315" W (9.14mm x 8.00mm)
Height - Seated (Max)：0.300" (7.62mm)
Footprint：-
Style：-
Grade：-
Qualification：-

Download product information

750315230

Overview

The Würth Elektronik 750315230 is a surface-mount power transformer designed for isolated switching mode power supplies (SMPS). It belongs to the MID-PPMAX series, engineered specifically for use with the MAX14940 chipset. The component supports forward and push-pull converter topologies. It features an operating temperature range of -40°C to 125°C and measures 9.14mm in length by 8.00mm in width, with a maximum height of 7.62mm. Key electrical specifications include an inductance of 384 µH and a power rating of 800 mW.

Feature Summary

Designed for isolated SMPS applications using forward or push-pull converter topologies
Optimized integration with the MAX14940 controller chipset
Surface mount construction suitable for automated assembly processes

Applications

Forward converter power supply designs
Push-pull converter power supply architectures
Isolated DC-DC conversion systems

Procurement Notes

Verify the specific ordering suffix to ensure correct packaging configuration, such as tape and reel or cut tape options. Confirm that the MAX14940 chipset remains the intended control solution for the design. Check RoHS compliance status and moisture sensitivity level requirements against manufacturing capabilities before finalizing procurement orders.

Selection Notes

Select this component when designing isolated power stages requiring compatibility with the MAX14940 controller. Ensure the PCB footprint accommodates the specified 9.14mm x 8.00mm dimensions. Validate thermal management strategies to maintain operation within the -40°C to 125°C range under full load conditions.

Part Context

This transformer is part of the MID-PPMAX product family from Würth Elektronik. The series focuses on providing standardized magnetic components for common SMPS controller families. The 750315230 variant is specifically tuned for the electrical characteristics required by the MAX14940 integrated circuit.
