Description：XFMR FWD P-P SMD
Series：MID-PPMAX
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:13ec30917937 Category: Switching Converter, SMPS Transformers Brand: Würth Elektronik

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：XFMR FWD P-P SMD
Series：MID-PPMAX
Mfr：Würth Elektronik
Package：Tape & Reel (TR),Cut Tape (CT)
Type：-
Applications：Forward, Push-Pull Converters
Intended Chipset：-
Chipset Manufacturer：-
Voltage - Primary：-
Voltage - Auxiliary：-
Voltage - Isolation：-
Inductance @ Frequency：-
Frequency：-
Operating Temperature：-40°C ~ 125°C
Mounting Type：Surface Mount
Size / Dimension：0.360" L x 0.315" W (9.14mm x 8.00mm)
Height - Seated (Max)：0.300" (7.62mm)
Footprint：-
Style：-
Grade：-
Qualification：-

Download product information

750315231

Overview

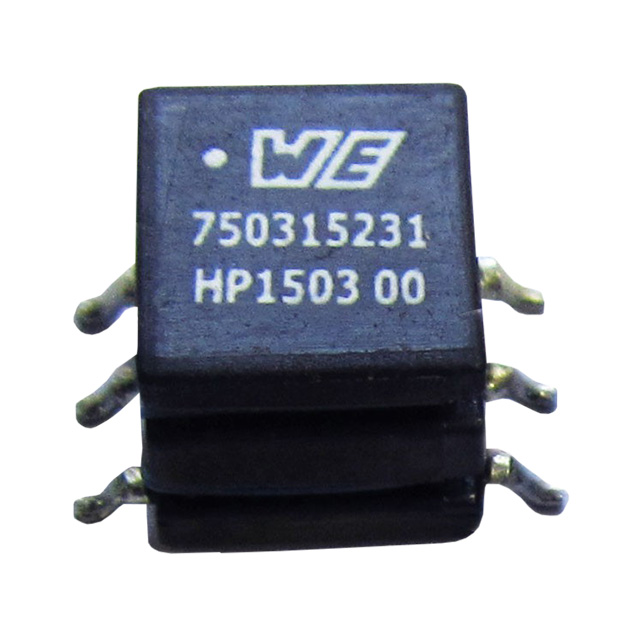

The Würth Elektronik 750315231 is a surface-mount transformer designed for forward and push-pull converter topologies within switch-mode power supplies. It provides electrical isolation between circuit stages. The component operates across an extended temperature range of -40°C to +125°C. Its physical dimensions are 9.14mm in length, 8.00mm in width, and a maximum height of 7.62mm. It belongs to the MID-PPMAX series and is optimized for use with the MAX14855 chipset.

Feature Summary

Designed specifically for forward and push-pull converter applications
Provides galvanic isolation for SMPS circuits
Optimized for integration with the MAX14855 chipset

Applications

Forward converter power supply designs
Push-pull converter architectures
Isolated switch-mode power supply (SMPS) systems

Procurement Notes

Verify the manufacturer part number 750315231 against official Würth Elektronik documentation to ensure authenticity. Confirm that the specific ordering suffix matches the required packaging type, such as tape and reel or cut tape, as these affect handling procedures. Check for recent Product Change Notifications regarding material or assembly updates to ensure compliance with current project specifications.

Selection Notes

Select this component when designing isolated power stages requiring compatibility with the MAX14855 controller. Ensure the PCB layout accommodates the specified footprint dimensions of 9.14mm by 8.00mm. Verify that the thermal environment supports the -40°C to +125°C operating range. Consider the surface-mount installation method during mechanical design to ensure proper soldering and structural integrity.

Part Context

This transformer is part of the MID-PPMAX series from Würth Elektronik, which focuses on compact solutions for modern power electronics. It serves as a critical passive component in isolated DC-DC conversion stages. The product line emphasizes reliability and compatibility with established controller chipsets to streamline power supply development cycles.
