750315232

Overview

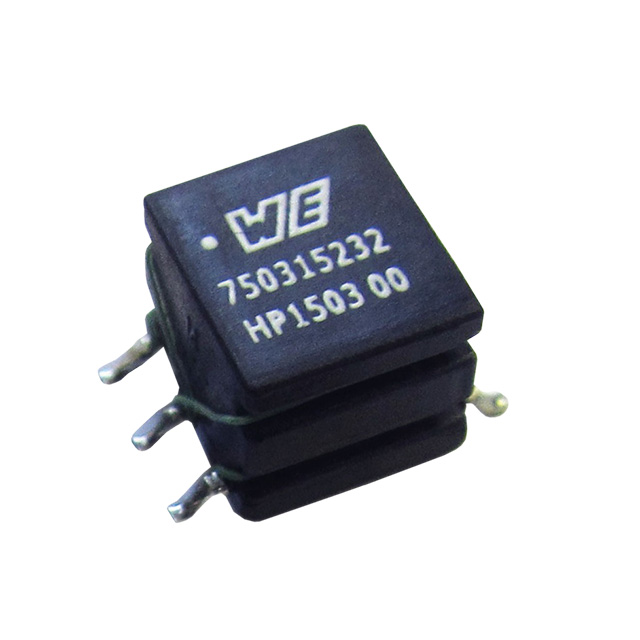

The Würth Elektronik 750315232 is a surface-mount power transformer designed for forward and push-pull converter topologies within switch-mode power supplies. It provides electrical isolation and belongs to the MID-PPMAX series. The component operates across a temperature range of -40°C to 125°C. Its physical dimensions are 9.14mm in length, 8.00mm in width, with a maximum height of 7.62mm. It utilizes a lead-free RoHS 3 compliant construction.

Feature Summary

• Engineered specifically for forward and push-pull converter applications
• Provides galvanic isolation for SMPS circuits
• Optimized for surface-mount assembly processes

Applications

• Forward converter power stages
• Push-pull converter designs
• Isolated DC/DC conversion modules

Procurement Notes

Verify the specific datasheet version against the manufacturing date code, as PCN documents indicate potential specification corrections. Confirm that the required isolation ratings and thermal performance align with the final system design constraints before integration. Ensure compatibility with the intended PCB footprint and reflow soldering profile.

Selection Notes

Select this component when designing isolated power supplies utilizing forward or push-pull architectures. It is suitable for environments requiring operation up to 125°C. Consider the compact SMD package size for space-constrained layouts. Validate that the primary voltage requirements match the circuit topology specifications.

Part Context

This transformer is part of the MID-PPMAX series from Würth Elektronik, which focuses on high-density magnetic components for modern power electronics. The series supports various converter topologies requiring reliable isolation. Würth Elektronik manufactures these components at global facilities to ensure consistent quality and supply chain stability for industrial and commercial applications.

Replacement Considerations

No public confirmed substitute part numbers are available.
