750318962

Overview

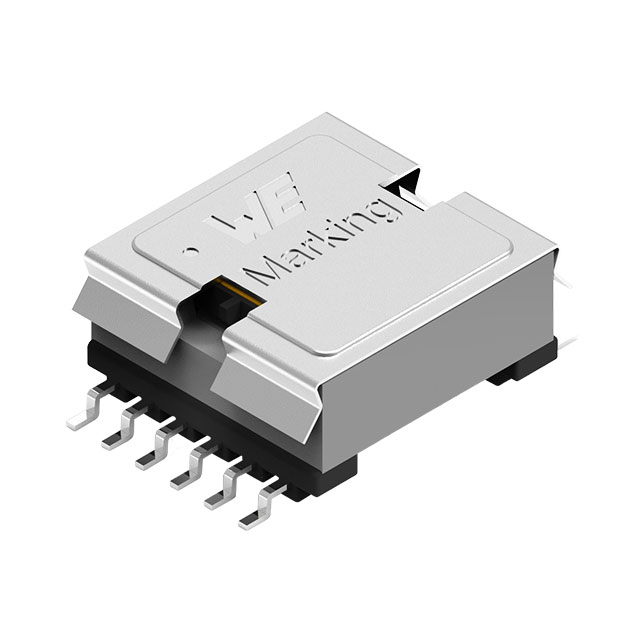

The Würth Elektronik 750318962 is a WE-PoE Power over Ethernet transformer designed for surface mount technology. It utilizes an EFD20 core configuration to support power delivery applications with a rated capacity of 95W. The component operates within a temperature range of -40°C to +125°C and features an inductance of 70 uH. This board-mount transformer integrates primary and secondary windings to facilitate efficient energy transfer in PoE networks.

Feature Summary

• Supports Power over Ethernet (PoE) standards for simultaneous data and power transmission
• Utilizes EFD20 core geometry for compact high-power density design
• Rated for 95W power handling capability in integrated circuits
• Designed for surface mount assembly on printed circuit boards

Applications

• Power over Ethernet network interface cards
• PoE-powered endpoint devices requiring 95W input
• Industrial networking equipment with high power demands
• Smart camera systems utilizing IEEE 802.3bt standards

Procurement Notes

Verify the specific datasheet version for the 750318962 to confirm pinout compatibility and isolation voltage ratings before integration. Ensure that the PCB footprint matches the manufacturer's recommended land pattern to guarantee reliable soldering and electrical performance. Cross-reference the 70 uH inductance specification with the target circuit requirements to validate system stability under load conditions.

Selection Notes

Select this component when designing systems requiring high-power PoE solutions up to 95W. The EFD20 package offers a balance between thermal performance and spatial efficiency. Consider the operating temperature range of -40°C to +125°C for environments with extreme thermal variations. Verify that the target application supports the specific PoE standard associated with this power rating.

Part Context

This part belongs to the WE-PoE series from Würth Elektronik, specialized for Ethernet connectivity. The series focuses on integrating magnetic components directly onto the PCB to reduce assembly complexity. The 750318962 specifically addresses the growing demand for higher power budgets in modern networking infrastructure, replacing discrete magnetics with integrated solutions.

Replacement Considerations

Consult official Wurth Elektronik documentation for direct cross-references. No public substitute part numbers are confirmed in the provided source material.
