Product Detailed Parameters

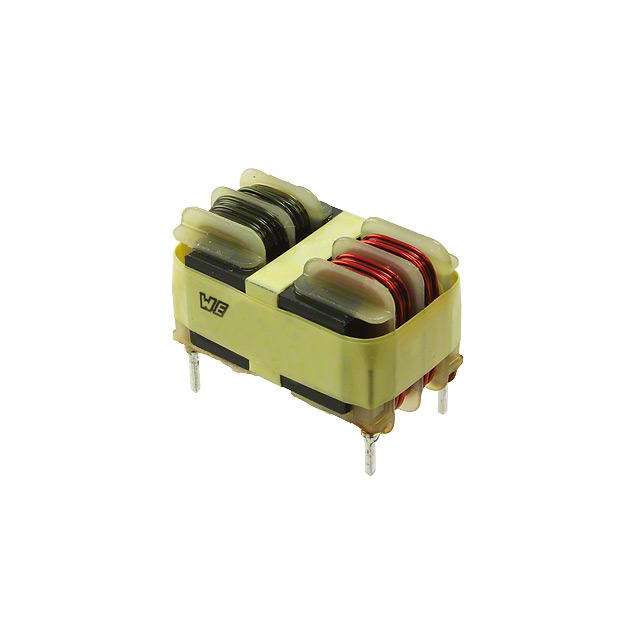

- Description：CMC 6.8MH 1.3A 2LN TH
- Series：MID-D16US
- Mfr：Würth Elektronik
- Package：Tray
- Filter Type：-
- Number of Lines：2
- Current Rating (Max)：1.3A
- DC Resistance (DCR) (Max)：340mOhm
- Voltage Rating - DC：-
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 125°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.900" L x 0.550" W (22.86mm x 13.97mm)
- Height (Max)：0.585" (14.86mm)
- Package / Case：Horizontal, 4 PC Pin
- Inductance @ Frequency：6.8 mH @ 10 kHz
- Impedance @ Frequency：-
- Qualification：-
- Grade：-
Download product information
Overview
The Würth Elektronik 750341633 is a common mode filter choke from the MID-DC16US series, designed for power line applications. It features an inductance of 6.8 mH at 10 kHz with a tolerance range of -30% to +60%. The component supports a maximum DC current of 1.3 A and has a maximum DC resistance of 340 mOhms. It operates within a temperature range of -40°C to +125°C. The physical dimensions are 22.86 mm in length, 13.97 mm in width, and 15.5 mm in height. It utilizes through-hole mounting for PCB integration.
Feature Summary
- Provides common mode noise suppression for power lines
- Supports high current handling up to 1.3 A
- Designed for through-hole PCB mounting
Applications
- Power line filtering
- Electromagnetic interference (EMI) suppression
- Switch-mode power supply input stages
Procurement Notes
Verify the specific part number against official manufacturer datasheets to ensure compatibility with design requirements. Confirm that the inductance tolerance and current ratings meet the system specifications. Check for RoHS compliance status as indicated in the product documentation. Ensure the through-hole package dimensions fit the printed circuit board layout constraints before finalizing procurement decisions.
Selection Notes
Select this component when designing circuits requiring common mode chokes with a 6.8 mH inductance value. Consider the 1.3 A current rating and 340 mOhms DC resistance for power loss calculations. The through-hole installation method should be compatible with the assembly process. Evaluate the operating temperature range of -40°C to +125°C against environmental conditions.
Part Context
This component belongs to the MID-DC16US series of common mode chokes manufactured by Würth Elektronik. These components are specialized for electromagnetic interference suppression in electronic circuits. The series offers various inductance values to suit different filtering requirements while maintaining consistent physical and electrical characteristics across the product line.
Replacement Considerations
Check for alternative part numbers within the same MID-DC16US series or other Würth Elektronik common mode choke families that match the required inductance and current specifications. Verify pinout compatibility and physical dimensions if substituting with components from different manufacturers.
