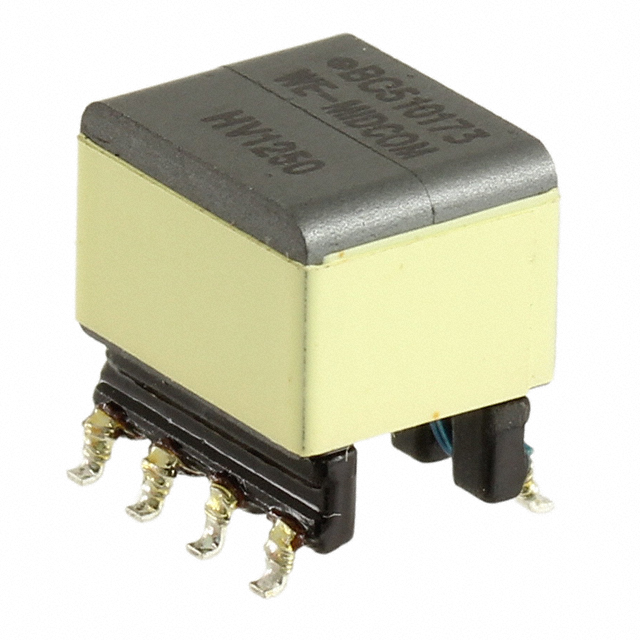

750510173 is listed in the Pulse Transformers range at ChipApex. The manufacturer field lists Würth Elektronik. Its product description is XFRM WE-DSL ISDN DAUGHTERBRD. Review the specifications below when checking this part for your BOM.
Pulse Transformers specifications for 750510173
- Description：XFRM WE-DSL ISDN DAUGHTERBRD
- Series：MID-DSLIKN
- Mfr：Würth Elektronik
- Package：Tape & Reel (TR),Cut Tape (CT)
- Transformer Type：VDSL
- Inductance：220µH
- ET (Volt-Time)：-
- Turns Ratio - Primary:Secondary：1:01
- Mounting Type：Surface Mount
- Size / Dimension：0.385" L x 0.360" W (9.78mm x 9.14mm)
- Height - Seated (Max)：0.415" (10.54mm)
- Operating Temperature：-40°C ~ 85°C
- Grade：-
- Qualification：-
Pulse Transformers datasheet and documents for 750510173
Pulse Transformers Overview
The Würth Elektronik 750510173 is a WE-DSL ISDN daughterboard transformer designed for signal transmission. It functions as an audio or signal transformer compatible with ISDN and VDSL applications. The component supports surface mount installation on printed circuit boards. It is manufactured to meet RoHS compliance standards, ensuring suitability for environmentally regulated electronic assemblies.
Pulse Transformers Feature Summary
- Designed specifically for ISDN and VDSL daughterboard signal processing
- Surface mount construction for automated PCB assembly
- RoHS compliant manufacturing for environmental safety
Pulse Transformers Applications
- ISDN interface circuits
- VDSL modem implementations
- Daughterboard signal transformers
Pulse Transformers Procurement Notes
Verify the specific datasheet version against the manufacturer's current documentation to ensure compatibility with latest design revisions. Confirm that the surface mount footprint matches the target PCB layout. Check for any recent product change notifications regarding material composition or pin configuration updates.
Pulse Transformers Selection Notes
Select this component when designing ISDN or VDSL daughterboards requiring dedicated signal transformation. Ensure the application voltage and current ratings align with the system requirements. Consider the surface mount package dimensions during the mechanical layout phase to guarantee proper clearance and soldering integrity.
Pulse Transformers Part Context
This part belongs to the WE-DSL series by Würth Elektronik, focusing on digital line interface solutions. It serves as a critical passive component in telecommunications hardware, facilitating signal integrity between the main board and daughter modules. The series emphasizes reliability in high-frequency data transmission environments.
Pulse Transformers Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult the manufacturer directly for cross-reference information or equivalent alternatives within the WE-DSL family.
