Headers, Male Pins Overview

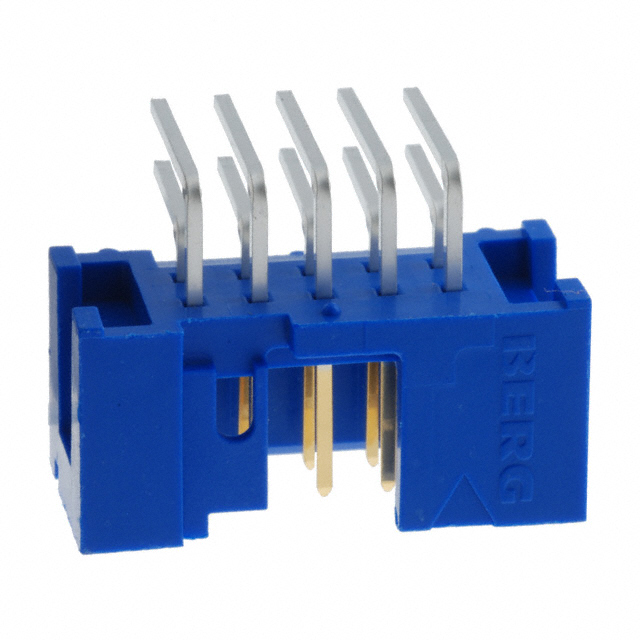

The Amphenol ICC (FCI) 75867-101 is a Quickie™ series header connector designed for board-to-cable or wire applications. It features a right-angle, through-hole mounting style with a 2.54mm pitch and 10 positions in a dual-row configuration. The contacts are male pins with gold GXT™ plating on the mating interface and tin plating on the tail, fabricated from phosphor bronze. The housing is blue thermoplastic glass-filled material rated UL94 V-0, providing a four-wall shielded design. This component utilizes a push-pull fastening mechanism and is intended for reliable signal transmission in electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle through-hole mounting for space-efficient PCB integration
• Gold GXT™ contact plating ensures durable and low-resistance connections
• Four-wall shielded housing provides environmental protection and alignment
• Push-pull fastening system secures mating engagement

Headers, Male Pins Applications

• Board-to-cable interconnections
• Wire-to-board assemblies
• General electronic equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific suffix to confirm pin count and orientation, as the base number 75867 denotes the series. Confirm RoHS compliance status if required by project specifications. Check lead times as availability may vary. Ensure the selected variant matches the required current rating and temperature range for the target application environment.

Headers, Male Pins Selection Notes

Select this connector when a right-angle profile is necessary for cable management. The 2.54mm pitch suits standard density requirements. Consider the push-pull retention for secure mating. Verify that the blue insulation color meets visual identification needs. Ensure the PCB footprint accommodates the right-angle terminal geometry and shielding walls.

Headers, Male Pins Part Context

This part belongs to the Quickie™ family of connectors from Amphenol ICC (FCI). The series is known for cost-effective solutions with polarization options. The 75867 base number indicates a header variant within this line. Similar parts in the series offer different pin counts and orientations, such as vertical or straight configurations, allowing for flexible design integration across various product lines.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 10-position, 2.54mm pitch right-angle headers from compatible manufacturers. Verify mechanical dimensions, pin layout, and electrical ratings before substitution. Cross-reference with Amphenol ICC's updated catalog for potential newer revisions or equivalent series components that maintain form, fit, and function compatibility.
