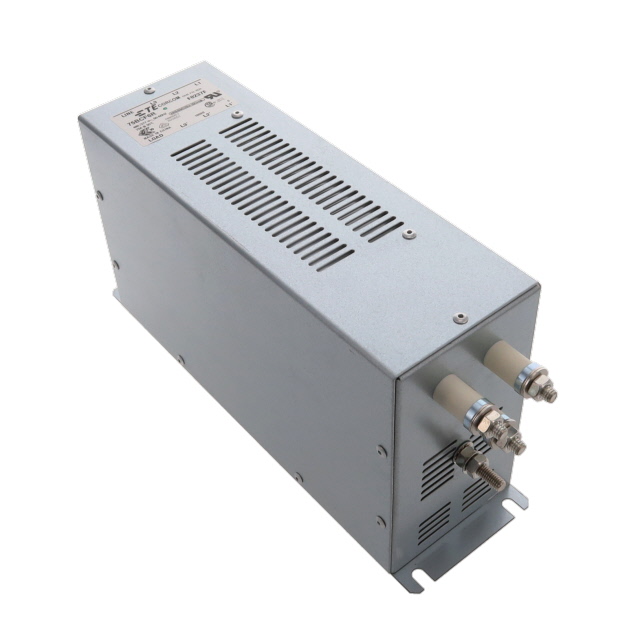

75BCF6R

$320.80

Description：LINE FILTER 75A CHASSIS MOUNT
Series：BCFXR
Mfr：TE Connectivity Corcom Filters
Package：Box

SKU:fca972ee12cb Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 75A CHASSIS MOUNT
Series：BCFXR
Mfr：TE Connectivity Corcom Filters
Package：Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：75 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UR, VDE
Operating Temperature：-10°C ~ 50°C
Mounting Type：Chassis Mount
Termination Style：Threaded Post (M5)
Inductance：1.06mH
Voltage - Rated AC (Phase to Ground/Neutral)：277 V
Voltage - Rated AC (Phase to Phase)：480 V

Download product information

75BCF6R

Overview

The TE Connectivity Corcom 75BCF6R is a three-phase RFI power line filter from the BCF series, rated for 75 A and 277 VAC. It features a two-stage filtering design with chassis mount installation and stud input terminals. The unit includes 0.1 µF capacitance and is designed for general-purpose electromagnetic interference mitigation in industrial environments.

Feature Summary

Two-stage RFI filtering architecture
Chassis mount configuration
Stud input terminal interface

Applications

General purpose industrial equipment
Three-phase power distribution systems
Electromagnetic interference mitigation

Procurement Notes

Verify exact voltage ratings and current capacities against official datasheets before integration. Confirm mounting hardware compatibility and terminal specifications to ensure proper installation. Check for obsolescence status as availability may vary across distributors.

Selection Notes

Select this component for applications requiring robust three-phase noise suppression. Ensure the system operates within the specified 277 VAC and 75 A limits. Consider thermal management requirements given the high current rating and enclosed chassis design.

Part Context

Part of the Corcom BCF series, designed for heavy-duty industrial power filtering. Provides reliable EMI reduction for sensitive electronic loads connected to three-phase AC sources.

Replacement Considerations

Consult official substitution guides for equivalent models. Verify electrical parameters and physical dimensions match existing enclosure constraints before replacing.
