Product Detailed Parameters
- Description：LINE FILTER 440VAC 75A CHASS MNT
- Series：KEH-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：75 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

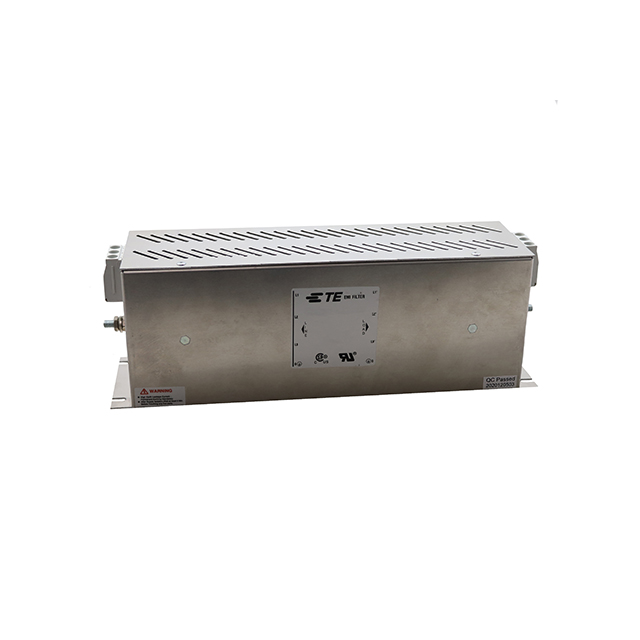

The TE Connectivity Corcom Filters 75KEHD10ABSD is a three-phase EMI/EMC power line filter designed for industrial applications. It features a dual-stage configuration with a delta connection and chassis mounting style. The unit operates at a rated voltage of 440 VAC and supports a current rating of 75 A at frequencies of 50 Hz or 60 Hz. Electrical specifications include a leakage current of 15 mA and screw-type termination. Physical dimensions are 320 mm in length, 90 mm in width, and 150 mm in height. The component functions within an operating temperature range of -25 C to +85 C and holds UL and CSA compliance certifications.
Feature Summary
- Dual-stage electromagnetic interference mitigation architecture
- Chassis mount design with screw terminal connections
- Delta configuration for three-phase power systems
Applications
- Industrial automation machinery
- Power conditioning equipment
- Electrical distribution panels
Procurement Notes
Verify the obsolete status and end-of-life designation before procurement planning. Confirm that the specific 440 VAC rating and 75 A current capacity align with the target system requirements. Ensure compatibility with the required chassis mounting dimensions and screw termination interface. Check for available replacement alternatives due to discontinuation.
Selection Notes
Select this model when a robust dual-stage filtering solution is required for high-current three-phase circuits. The chassis mount form factor suits panel integration where space allows for larger footprints. Verify that the 15 mA leakage current meets safety standards for the specific installation environment. Ensure the operating temperature range covers the expected ambient conditions.
Part Context
This component belongs to the KEH series of power line filters from TE Connectivity Corcom Filters. The series provides specialized EMI/EMC protection for demanding industrial environments. The KEH models typically feature high current ratings and durable construction suitable for heavy-duty power applications.
Replacement Considerations
Public documentation indicates this part number is discontinued. No specific substitute part numbers are confirmed in the provided source material. Consult manufacturer resources for current equivalent offerings.
