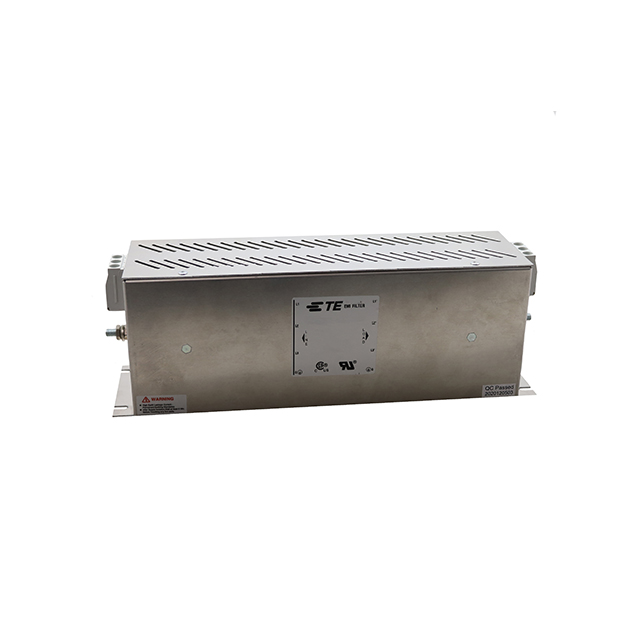

75KEHD10BBSD

$337.14

Description：LINE FILTER 520VAC 75A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box

SKU:79bcfd080d06 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 520VAC 75A CHASS MNT
Series：KEH-BS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box
Filter Type：Three Phase (Delta)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：75 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

75KEHD10BBSD

Overview

The TE Connectivity Corcom Filters model 75KEHD10BBSD is a three-phase EMC/EMI line filter designed for chassis mounting. It operates at a rated current of 75 A and a voltage of 520 VAC at 50/60 Hz. The unit features a two-stage filtering configuration with terminal block termination. It is RoHS compliant and belongs to the KEH-BS series.

Feature Summary

Three-phase EMI/RFI mitigation
Two-stage filtering architecture
Chassis mount installation
Terminal block termination

Applications

AC/DC Drives
HVAC Systems

Procurement Notes

Verify the exact part number against official TE Connectivity documentation before procurement. Confirm that the application requires a three-phase, 75A, 520VAC rating. Ensure chassis mounting provisions and terminal block wiring methods match the system design requirements.

Selection Notes

Select this component when high-current three-phase noise suppression is required. The two-stage design offers enhanced attenuation compared to single-stage units. Verify compatibility with 520VAC systems and ensure adequate chassis space for chassis-mount installation.

Part Context

This component is part of the KEH-BS series from TE Connectivity Corcom Filters. The series focuses on robust electromagnetic interference mitigation for industrial applications requiring high current handling capabilities in three-phase configurations.
