Product Detailed Parameters
- Description：LINE FILTER 440VAC 75A CHASS MNT
- Series：KEM-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：75 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

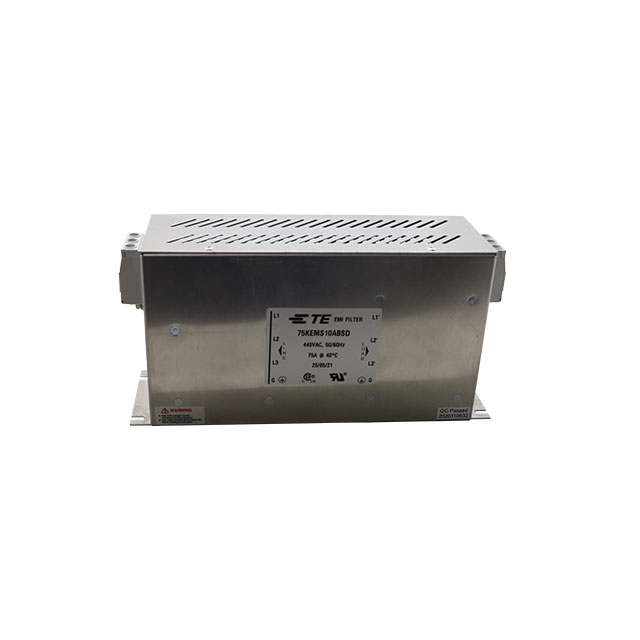

The TE Connectivity Corcom Filters 75KEMS10ABSD is a three-phase EMI/EMC power line filter designed for industrial applications. It features a single-stage configuration with a rated voltage of 440 VAC and a current rating of 75 A. The unit operates at frequencies of 50 Hz and 60 Hz, with a maximum leakage current of 5 mA. It utilizes terminal block termination and chassis mount installation. Physical dimensions are 250 mm in length, 85 mm in height, and 45 mm in width. The operating temperature range spans from -25 C to +85 C. Certifications include UL and CSA compliance.
Feature Summary
- Provides electromagnetic interference mitigation for three-phase power systems
- Engineered for high-performance noise suppression in industrial environments
- Supports robust chassis mounting via terminal block connections
Applications
- Industrial automation machinery
- Climate control systems
- Power conditioning equipment
Procurement Notes
Verify component authenticity through authorized distributors or the manufacturer directly. Confirm that the part number matches the specific datasheet requirements for your application. Check for RoHS and REACH compliance status as indicated in official documentation. Ensure that the terminal block interface aligns with existing wiring infrastructure before procurement.
Selection Notes
Select this model when a three-phase filter with a 75 A rating and 440 VAC capacity is required. Consider the physical dimensions for chassis integration within the enclosure. Verify that the terminal block connection type suits the available cabling. Ensure the operating temperature range meets the environmental conditions of the deployment site.
Part Context
This component belongs to the Corcom KEM series of power line filters manufactured by TE Connectivity. The series is designed for demanding industrial environments requiring effective EMI/EMC filtering. The KEM series typically offers single-stage filtration capabilities with various current ratings to suit different power distribution needs.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer's official replacement guide or contact technical support for verified alternatives.
