Product Detailed Parameters
- Description：LINE FILTER 440VAC 75A CHASS MNT
- Series：KEM
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Delta)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：75 A
- Frequency - Operating：50/60Hz
- Applications：Converter
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

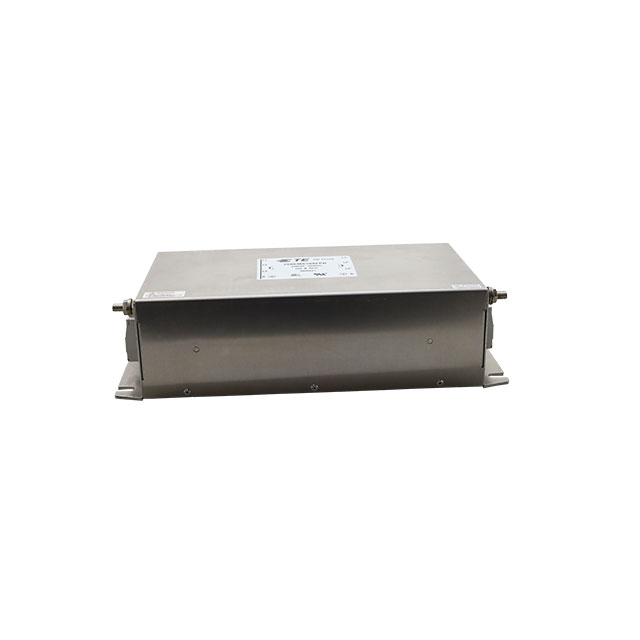

The 75KEMS10AFPD is a three-phase superior performance EMI filter manufactured by TE Connectivity / Corcom. It features a 440 VAC voltage rating and supports a continuous current of 75 A at operating frequencies of 50 Hz and 60 Hz. Designed for chassis mounting, the unit utilizes terminal block termination with screw connections. The filter exhibits a leakage current of 18 mA and operates within a temperature range of -25 C to +85 C. Physical dimensions are 202 mm in length, 120 mm in width, and 80 mm in height. It holds UL and CSA compliance certifications.
Feature Summary
- Provides superior electromagnetic interference suppression for three-phase power lines
- Engineered specifically for industrial converter applications
- Utilizes terminal block termination for secure electrical connections
Applications
- Industrial converters
- Three-phase power conditioning systems
- Electromagnetic compatibility (EMC) mitigation in industrial equipment
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels due to potential supply chain variations. Confirm that the terminal block interface matches existing panel designs. Ensure operational parameters align with system requirements before procurement. Check for updated compliance documentation if required by specific regional regulations.
Selection Notes
Select this model when superior attenuation is required for three-phase systems operating at 440 VAC. The terminal block interface suits applications requiring robust mechanical connections. Verify space constraints against the specified physical dimensions. Consider the 75 A current capacity relative to load requirements.
Part Context
This component belongs to the KEM series of power line filters from TE Connectivity / Corcom. The series offers various current ratings and connection types for industrial EMC needs. The 75KEMS10AFPD represents a high-performance variant designed for demanding three-phase environments.
Replacement Considerations
Consult official TE Connectivity documentation for verified substitute part numbers. Cross-reference specifications carefully to ensure compatibility with voltage, current, and mounting requirements.
