75KEMS10BBSD

Overview

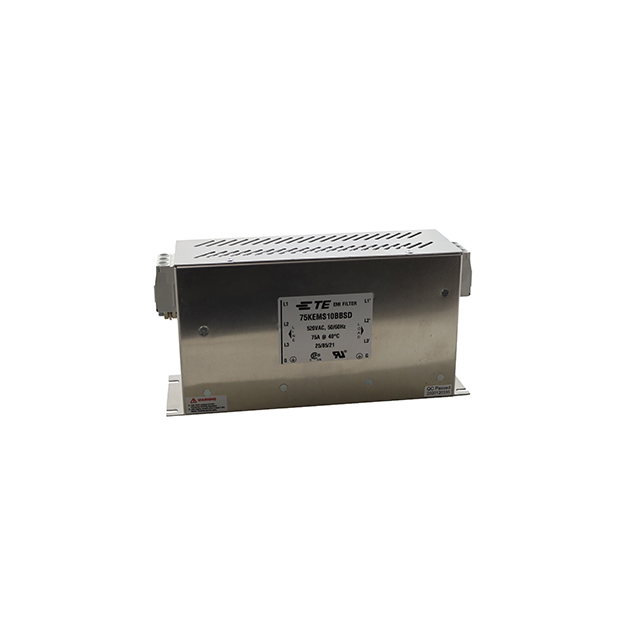

The TE Connectivity Corcom Filters 75KEMS10BBSD is a three-phase EMI/EMC power line filter designed for industrial applications. It features a single-stage filtering configuration with a current rating of 75 A and a voltage rating of 520 VAC. The unit operates at frequencies of 50 Hz and 60 Hz, utilizing terminal block connections for secure wiring. Designed for chassis mounting, the filter measures 270 mm in length, 85 mm in width, and 135 mm in height. It supports an operating temperature range from -25 °C to +85 °C and includes UL and CSA compliance certifications.

Feature Summary

• Provides robust electromagnetic interference mitigation for three-phase power systems
• Engineered for high-current industrial environments with durable chassis mount construction
• Ensures regulatory compliance through recognized safety certifications

Applications

• Industrial automation machinery
• Climate control systems
• Power conditioning equipment

Procurement Notes

Verify component authenticity by cross-referencing the manufacturer part number with official TE Connectivity documentation. Confirm that the specific suffix matches the required electrical specifications and termination style. Ensure compatibility with existing chassis mounting hardware and terminal block interfaces before integration into the final assembly design.

Selection Notes

Select this model when a three-phase solution is required for circuits demanding up to 75 A at 520 VAC. The terminal block interface suits applications requiring rigid mechanical connections rather than quick-connect terminals. Verify that the physical dimensions fit within the designated enclosure space and that the thermal environment remains within the specified operational temperature limits.

Part Context

This component belongs to the KEM-BS series of power line filters from TE Connectivity Corcom. The series is characterized by its suitability for heavy-duty industrial use, offering reliable noise suppression for sensitive electronic loads connected to three-phase AC power networks.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalent models. Do not assume functional interchangeability with generic three-phase filters without confirming matching current ratings, voltage tolerances, and mounting configurations.
