75KEPS10AFPW

Overview

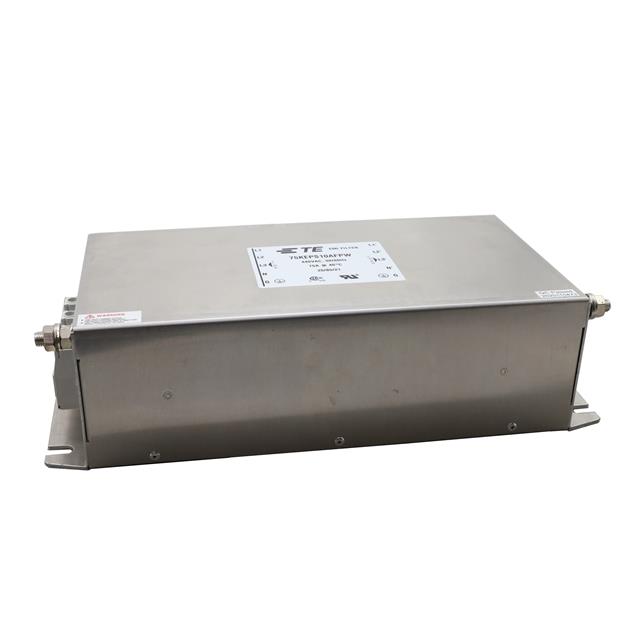

The 75KEPS10AFPW is a three-phase superior performance EMI filter manufactured by TE Connectivity / Corcom. It features a single-stage design rated for 440 VAC and 75 A current. The unit utilizes chassis mounting with terminal block connections. Electrical specifications include an 8.5 mA leakage current and operation at 50 Hz or 60 Hz. Physical dimensions are 270 mm in length, 85 mm in width, and 135 mm in height. The operating temperature range spans from -25 C to +85 C. Certifications include UL, CSA, and VDE.

Feature Summary

• Provides superior electromagnetic interference mitigation for three-phase power lines
• Engineered for high-current industrial applications up to 75 amperes
• Supports flexible installation via chassis mount configuration

Applications

• Industrial power converters
• Three-phase power distribution systems
• Electromagnetic compatibility filtering in heavy machinery

Procurement Notes

Verify component authenticity through authorized channels as the part may be discontinued. Confirm technical compliance with UL, CSA, and VDE standards before integration. Ensure terminal block compatibility matches existing wiring infrastructure. Validate thermal management requirements against the specified operating temperature range of negative twenty-five degrees Celsius to positive eighty-five degrees Celsius.

Selection Notes

Select this model for three-phase systems requiring 75 A capacity at 440 VAC. Compare physical dimensions of 270 by 85 by 135 millimeters against available panel space. Evaluate leakage current limits of 8.5 mA against safety regulations. Consider terminal block termination style versus quick connect alternatives based on assembly constraints.

Part Context

This component belongs to the KEP series of power line filters designed for robust noise suppression. The manufacturer integrates advanced filtering materials to handle high harmonic distortion. The product line targets demanding industrial environments where signal integrity and equipment protection are critical. This specific variant represents a high-capacity solution within the broader portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
