Product Detailed Parameters
- Description：LINE FILTER 520VAC 75A CHASS MNT
- Series：KEP-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Bulk,Box
- Filter Type：Three Phase (Wye)
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：520V
- Current：75 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

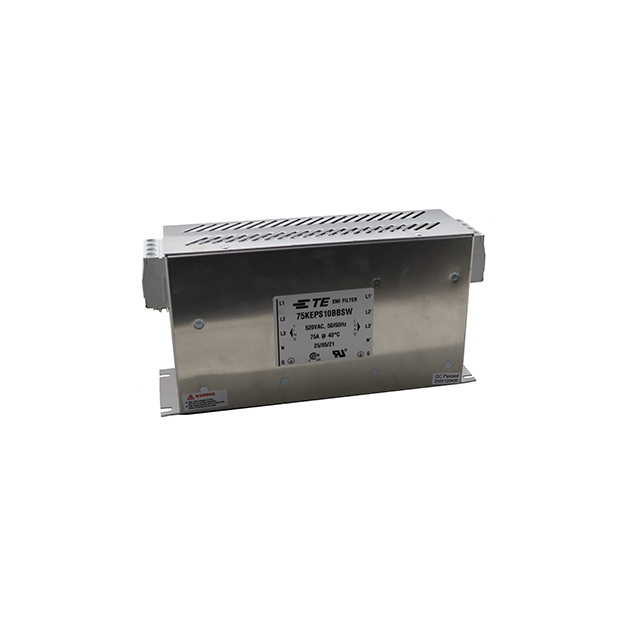

The 75KEPS10BBSW is a three-phase power line filter from the TE Connectivity Corcom KEP-BS series, designed for industrial applications. It features a single-stage configuration with chassis mounting and terminal block connections. The unit supports a nominal voltage of 520 VAC and handles a current rating of 75 A at 50/60 Hz frequencies. Constructed as an EMC/EMI filter, it provides electromagnetic interference mitigation for electrical systems operating within these specified electrical parameters.
Feature Summary
- Single-stage electromagnetic interference mitigation for three-phase systems
- Chassis mount construction with terminal block input and output connections
- Designed for industrial power line filtering applications
Applications
- Industrial power distribution systems
- Electrical equipment requiring EMI suppression
- Three-phase motor drive circuits
Procurement Notes
Verify component authenticity through authorized TE Connectivity channels or certified distributors. Confirm that the part number matches exactly 75KEPS10BBSW to ensure compatibility with 520 VAC three-phase systems. Check RoHS compliance status and datasheet revisions prior to procurement to guarantee adherence to current regulatory standards and technical specifications.
Selection Notes
Select this model for three-phase systems requiring 75 A capacity and 520 VAC operation. Ensure chassis mounting space accommodates the physical dimensions. Verify terminal block compatibility with existing wiring infrastructure. Consider leakage current requirements and thermal management needs relative to the installation environment and duty cycle.
Part Context
This component belongs to the Corcom KEP-BS series of power line filters manufactured by TE Connectivity. The series offers various current ratings and voltage configurations for industrial EMC applications. The 75KEPS10BBSW specifically addresses high-current three-phase filtering needs with a robust chassis-mounted design suitable for demanding industrial environments.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Consult TE Connectivity technical support for equivalent alternatives if this specific model is unavailable or discontinued.
