75KEPS10BFPW

Overview

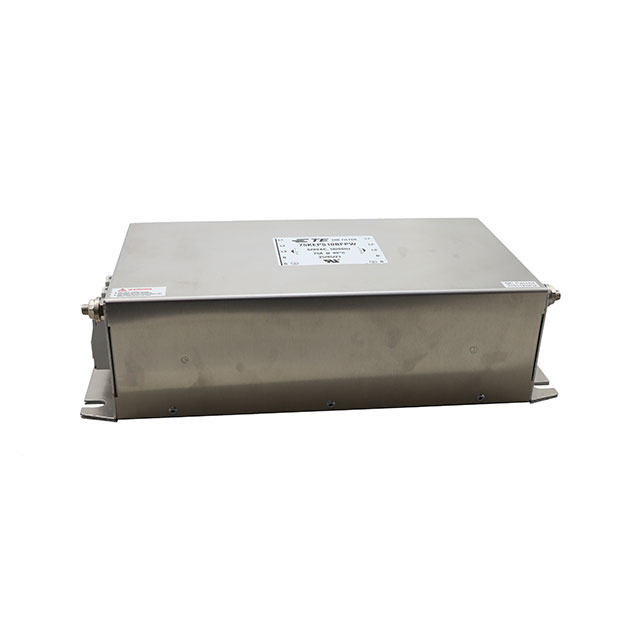

The 75KEPS10BFPW is a three-phase superior performance EMI power line filter manufactured by TE Connectivity / Corcom. It supports a rated voltage of 440 VAC and a continuous current of 75 A at operating frequencies of 50 Hz or 60 Hz. Designed for chassis mounting, the unit utilizes quick connect and screw termination methods. The filter exhibits a leakage current of 6 mA and operates within a temperature range of -25 °C to +85 °C. Physical dimensions are 270 mm in length, 85 mm in width, and 135 mm in height. It holds UL and CSA compliance certifications.

Feature Summary

• Provides superior performance electromagnetic interference suppression for three-phase systems
• Engineered specifically for converter applications and industrial power conditioning
• Supports high-capacity operation at 75 amperes with low leakage current characteristics

Applications

• Industrial power supplies
• Battery charging systems
• Converter applications

Procurement Notes

Verify component authenticity through authorized TE Connectivity channels due to discontinued status. Confirm technical specifications against official datasheets prior to integration. Ensure mechanical fitment matches chassis mounting requirements. Validate electrical ratings including 440 VAC and 75 A capacity for system compatibility. Check for RoHS and REACH compliance documentation as required by regional regulations.

Selection Notes

Select this model for three-phase circuits requiring robust EMI filtering at 75 amperes. Ensure the application environment remains within the specified -25 °C to +85 °C operating range. Verify that the chassis mounting style and terminal types align with existing infrastructure. Consider the physical dimensions of 270 x 85 x 135 mm for enclosure space planning. Confirm voltage rating suitability for 440 VAC systems.

Part Context

This component belongs to the KEPS series of power line filters from TE Connectivity / Corcom. The series focuses on superior performance EMI suppression for industrial environments. The specific model integrates into power condition subsystems where high current handling and strict noise reduction are necessary. It represents a specialized solution for three-phase wye configurations.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
