Product Detailed Parameters
- Description：LINE FILTER 440VAC 75A CHASS MNT
- Series：KEV-BS
- Mfr：TE Connectivity Corcom Filters
- Package：Box
- Filter Type：Three Phase (Wye)
- Configuration：Two Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：440V
- Current：75 A
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UL
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Chassis Mount
- Termination Style：Terminal Block
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

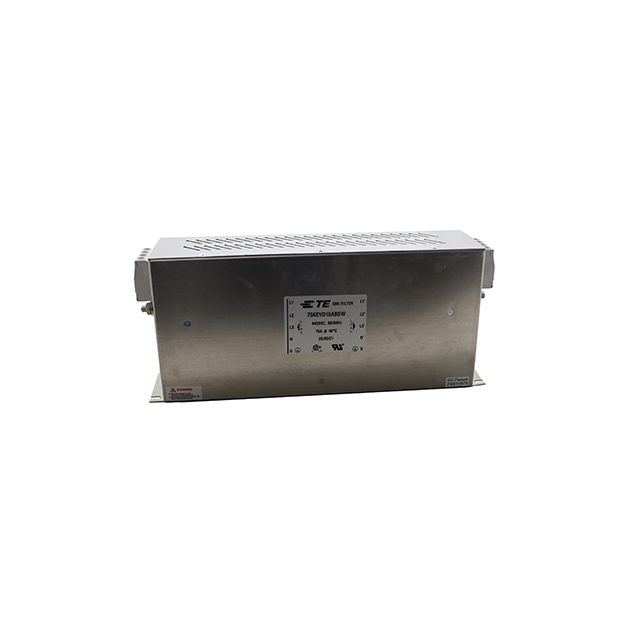

The 75KEVD10ABSW is a three-phase high-performance EMI filter manufactured by TE Connectivity Corcom Filters. Designed for chassis mounting, this component supports a rated voltage of 440 VAC and handles a continuous current of 75 A at operating frequencies of 50 Hz and 60 Hz. It features a two-stage configuration with Wye topology and utilizes quick connect and screw termination methods. The unit exhibits a leakage current of 11 mA and complies with UL and CSA standards.
Feature Summary
- Provides high-performance electromagnetic interference suppression for three-phase power lines
- Features a two-stage filtering architecture utilizing Wye topology
- Supports secure installation via chassis mount style with combined quick connect and screw terminations
Applications
- Industrial machinery requiring robust power line conditioning
- Three-phase motor drive systems
- Heavy-duty manufacturing equipment power supplies
Procurement Notes
Verify the specific manufacturer part number against official TE Connectivity documentation to ensure compatibility with existing system designs. Confirm that the required electrical ratings align with the target application's operational parameters before procurement. Note that availability status may vary as the product lifecycle should be checked directly with authorized distributors or the manufacturer.
Selection Notes
Select this model when a three-phase solution with high current capacity is required for industrial environments. Ensure the chassis mounting dimensions accommodate the physical space constraints of the enclosure. Verify that the termination types match the available wiring infrastructure and that the voltage rating exceeds the maximum system operating voltage.
Part Context
This component belongs to the KEV series of power line filters from TE Connectivity Corcom Filters. The series is engineered for demanding applications requiring significant attenuation of conducted emissions. The specific designation indicates its classification within the high-performance category for three-phase AC power systems.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source material. Consult TE Connectivity technical support for direct replacements or cross-reference options.
