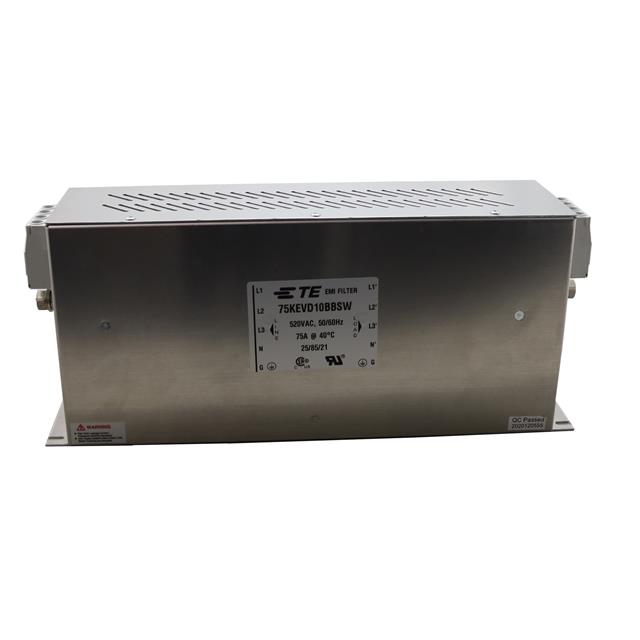

75KEVD10BBSW

$375.20

Description：LINE FILTER 520VAC 75A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box

SKU:2a415751f413 Category: Power Line Filter Modules Brand: TE Connectivity Corcom Filters

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 520VAC 75A CHASS MNT
Series：KEV-BS
Mfr：TE Connectivity Corcom Filters
Package：Bulk,Box
Filter Type：Three Phase (Wye)
Configuration：Two Stage
Voltage - Rated DC：-
Voltage - Rated AC：520V
Current：75 A
Frequency - Operating：50/60Hz
Applications：General Purpose
Approval Agency：CSA, UL
Operating Temperature：-25°C ~ 85°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：-
Voltage - Rated AC (Phase to Phase)：-

Download product information

75KEVD10BBSW

Overview

The 75KEVD10BBSW is a three-phase EMI/EMC power line filter manufactured by TE Connectivity Corcom. It features a dual-stage design with a current rating of 75 A and a voltage rating of 520 VAC. The unit operates at frequencies of 50 Hz and 60 Hz, with a maximum leakage current of 6 mA. Physical dimensions are 350 mm in length, 160 mm in width, and 92 mm in height. It utilizes chassis mounting and terminal block connections.

Feature Summary

Dual-stage electromagnetic interference mitigation for enhanced noise suppression
Terminal block input terminals for secure electrical connections
Chassis mount configuration for stable industrial installation

Applications

AC/DC Drives
HVAC Systems
Robotics
UPS Systems

Procurement Notes

Verify the specific datasheet version to confirm compliance details such as UL and CSA certifications. Check for RoHS and REACH SVHC status updates directly from the manufacturer's official documentation before finalizing procurement decisions.

Selection Notes

Select this component when a dual-stage filtering solution is required for three-phase systems operating at 520 VAC. Ensure the application environment supports chassis mounting and that the 75 A current capacity aligns with the load requirements.

Part Context

This model belongs to the KEV-BS series of three-phase filters designed for general-purpose industrial applications. It provides robust EMI/EMC protection for sensitive electronic equipment connected to AC power lines within standard industrial frequency ranges.

Replacement Considerations

Consult official TE Connectivity substitution guides for verified equivalent part numbers. Do not assume cross-compatibility with other series without confirming electrical ratings and physical footprint specifications.
