76345-104-34

Headers, Male Pins Overview

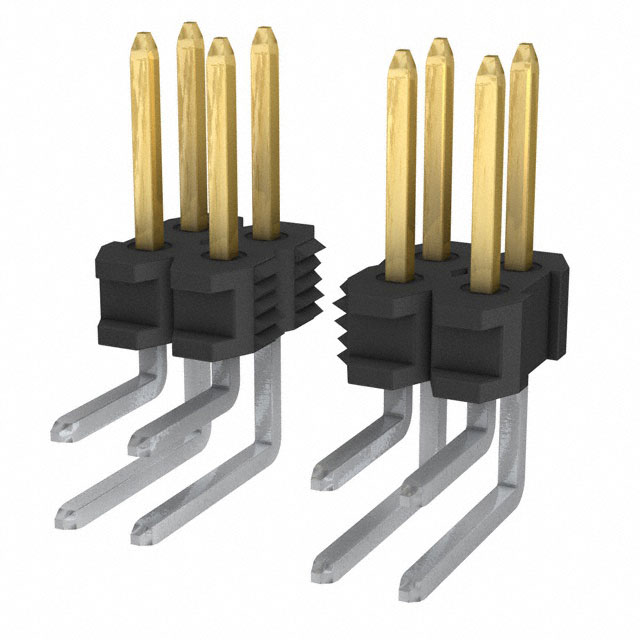

The Amphenol ICC (FCI) 76345-104-34 is a rectangular connector header belonging to the BERGSTIK® series. It features a right-angle through-hole mounting style with 34 positions and a 2.54mm pitch. The contacts are male pins designed for board-to-board applications, utilizing a push-pull fastening mechanism. The component is supplied in bag packaging and is currently marked as obsolete by the manufacturer.

Headers, Male Pins Feature Summary

• Right-angle through-hole termination for PCB integration
• Push-pull fastening system for secure connection
• Male pin contact type within the BERGSTIK® series

Headers, Male Pins Applications

• Board-to-board interconnect systems
• Industrial electronic assemblies
• Data processing equipment connections

Headers, Male Pins Procurement Notes

This component is officially listed as obsolete or end-of-life by the manufacturer. Procurement should focus on verifying remaining stock availability through authorized distributors or secondary market suppliers. Buyers must confirm the exact condition of legacy inventory prior to purchase, as standard supply channels may no longer support new orders for this specific part number.

Headers, Male Pins Selection Notes

Engineers requiring replacement components should evaluate current alternatives within the BERGSTIK® family or newer MezzSelect™ solutions. Selection criteria must account for the obsolete status of the original part, ensuring that substitute headers match the required 34-position count, 2.54mm pitch, and right-angle form factor while meeting existing mechanical and electrical interface specifications.

Headers, Male Pins Part Context

The 76345-104-34 belongs to the BERGSTIK® line, a well-established series of unshrouded and shrouded stick headers from Amphenol ICC (formerly FCI). This series is known for providing reliable signal interconnections in compact spaces. The specific model represents a legacy product within the broader portfolio of rectangular connector solutions offered by the company.

Headers, Male Pins Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation due to the obsolete status of the component. Users are advised to consult official Amphenol ICC cross-reference tools or engineering support for validated replacements compatible with the 34-position, 2.54mm right-angle header specification.
